License Lamp Harness Routing (GMC)
WARNING: This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

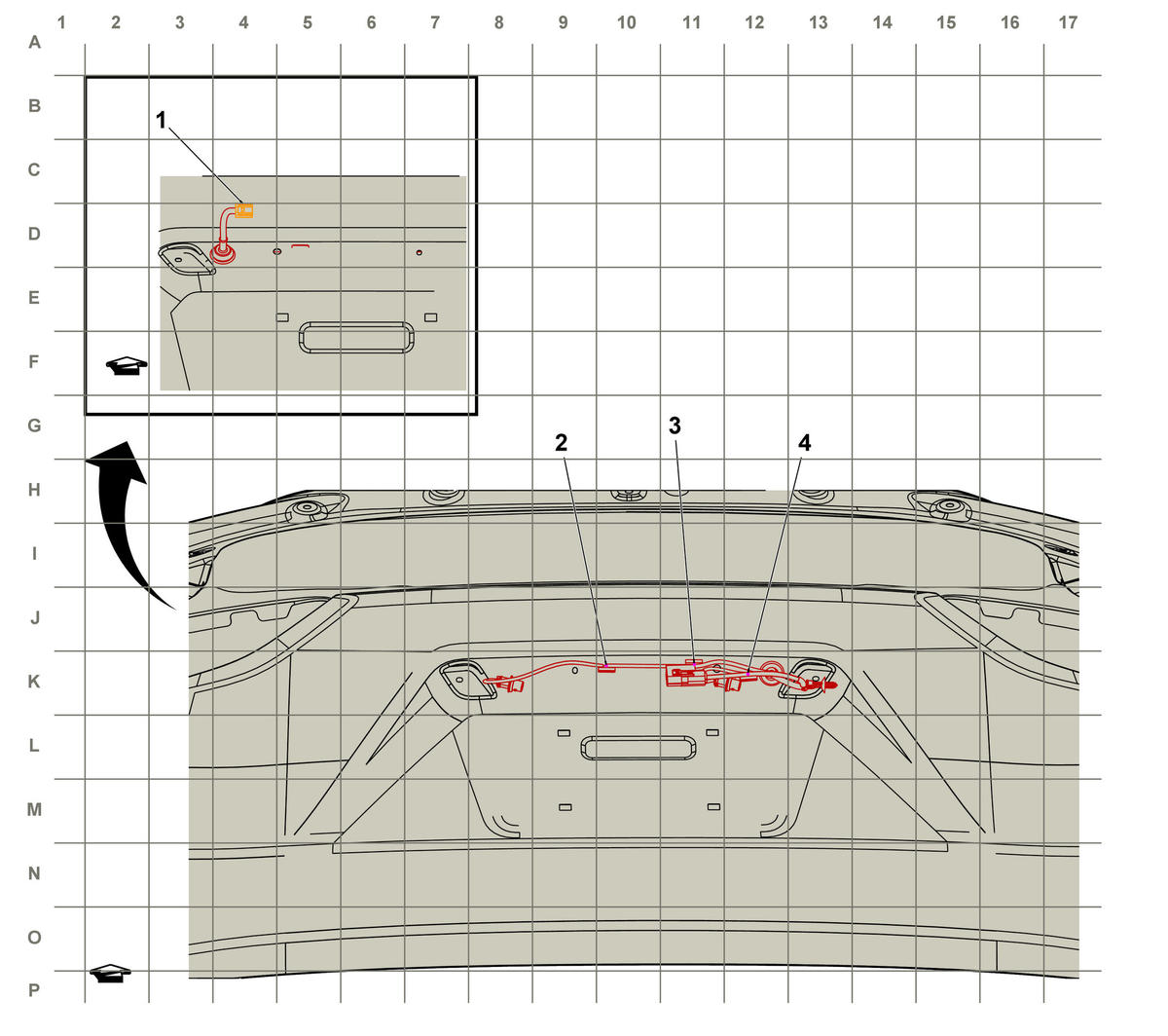

| Items |
|---|
| 1. X902 License Lamp Harness to Liftgate Harness (Z88) X902 License Lamp Harness to Liftgate Harness (Z88) , or X902 Liftgate Harness to Body Harness (UV2) , or X902 Liftgate Harness to Body Harness (UVB) |
| 2. J904 License Lamp Harness |
| 3. J901 Liftgate Harness |
