Left Rear Seat Harness Routing

WARNING: This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

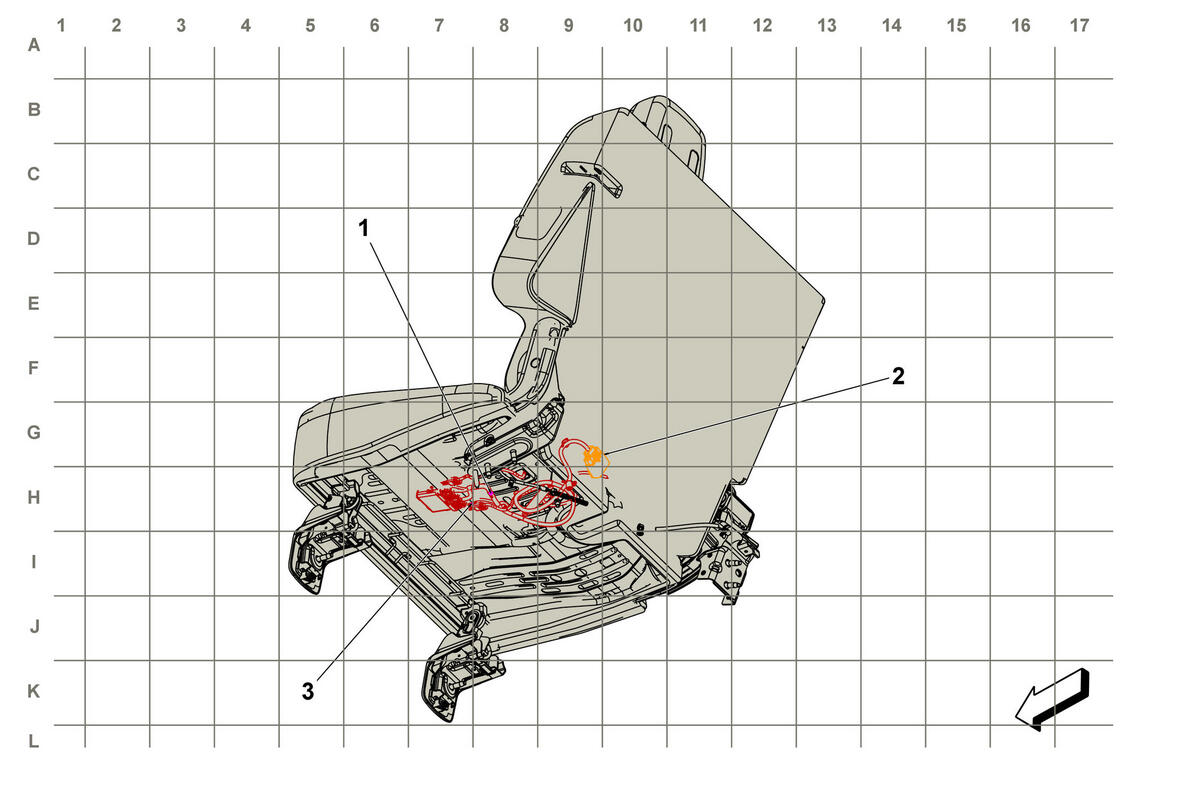

GM4597547Courtesy of GENERAL MOTORS COMPANY
Left Rear Seat Harness Routing

Harness Name Callout
J365 Left Rear Seat Harness (KA6) 1
X330 Body Harness to Left Rear Seat Harness X330 Body Harness to Left Rear Seat Harness 2
J366 Left Rear Seat Harness (KA6) 3
