Left Rear Door Harness Routing

WARNING: This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

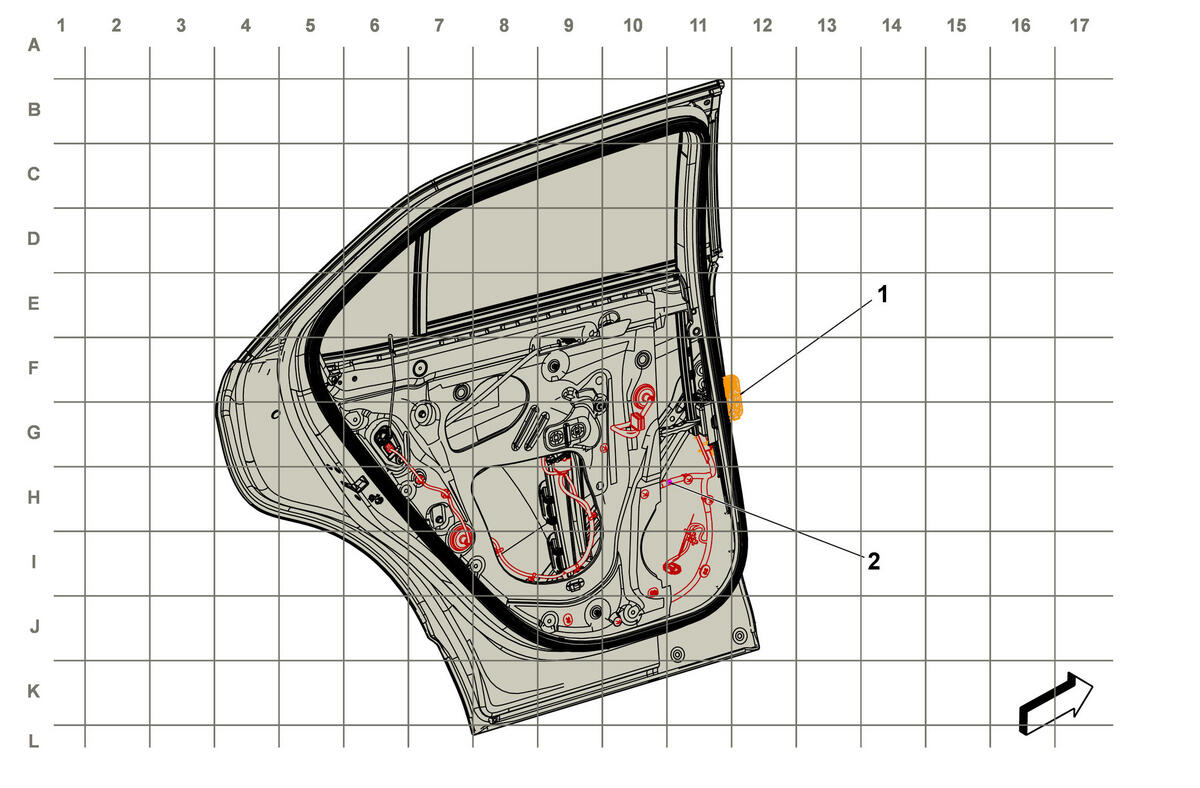

GM4589695Courtesy of GENERAL MOTORS COMPANY
Left Rear Door Harness Routing

Harness Name Callout
X700 Left Rear Door Harness to Body Harness X700 Left Rear Door Harness to Body Harness 1
J700 Left Rear Door Harness 2
