Inside Rear View Mirror Harness Routing

WARNING: This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

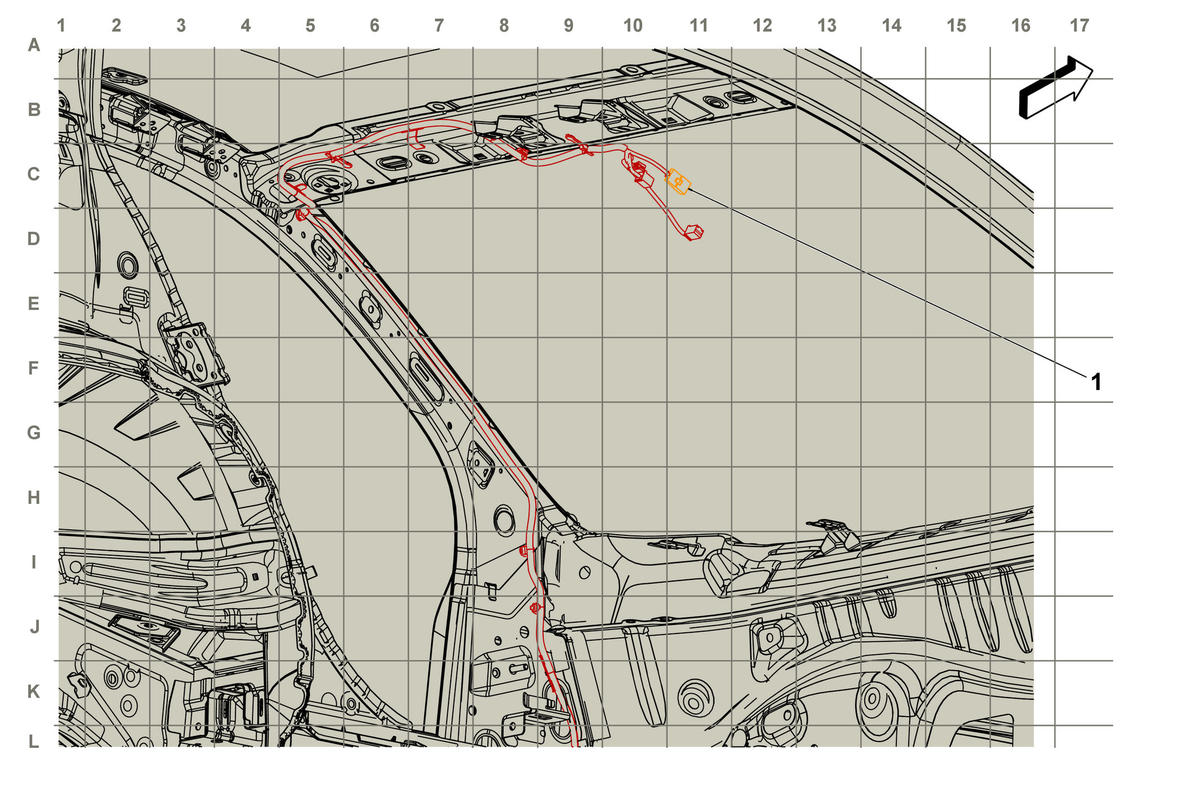

GM4586075Courtesy of GENERAL MOTORS COMPANY
Inside Rear View Mirror Harness Routing

Harness Name Callout
X301 HVAC Control Module Jumper Harness to Body Harness (ASV-CE1) X301 HVAC Control Module Jumper Harness to Body Harness (ASV-CE1) 1
