Front Fascia Harness Routing (GMC)
WARNING: This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

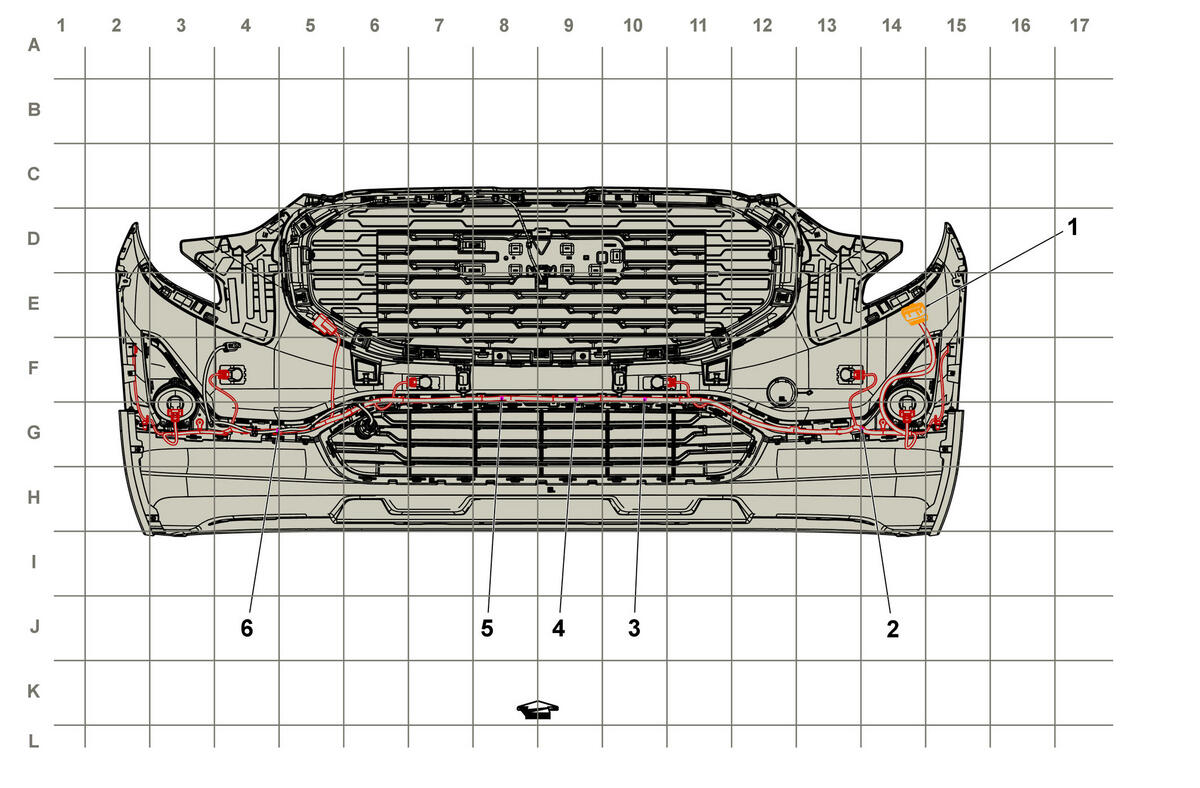

Front Fascia Harness Routing (GMC)
| Harness Name | Callout |
|---|---|
| X100 Front Fascia Harness to Body Harness X100 Front Fascia Harness to Body Harness (UD5/UFQ) | 1 |
| J100 Front Fascia Harness (T3U) | 2 |
| J102 Front Fascia Harness | 3 |
| J101 Front Fascia Harness (T3U) | 4 |
| J103 Front Fascia Harness | 5 |
| J104 Front Fascia Harness | 6 |
