Engine Harness Routing - Right Front of Engine (LYX+F48)
WARNING: This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

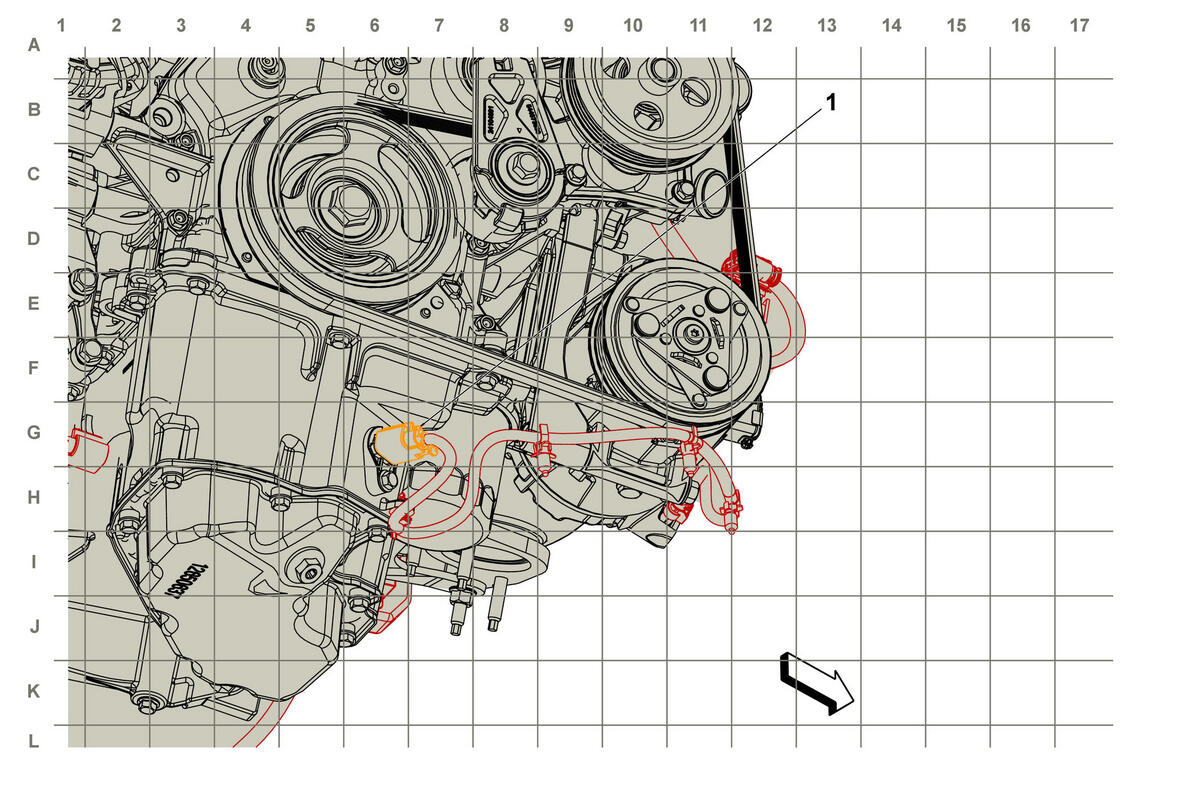

Engine Harness Routing - Right Front of Engine (LYX+F48)
| Harness Name | Callout |
|---|---|
| X111 Engine Harness to Engine Oil Pressure Control Solenoid Valve Harness (LYX) X111 Engine Harness to Engine Oil Pressure Control Solenoid Valve Harness (LYX) | 1 |
