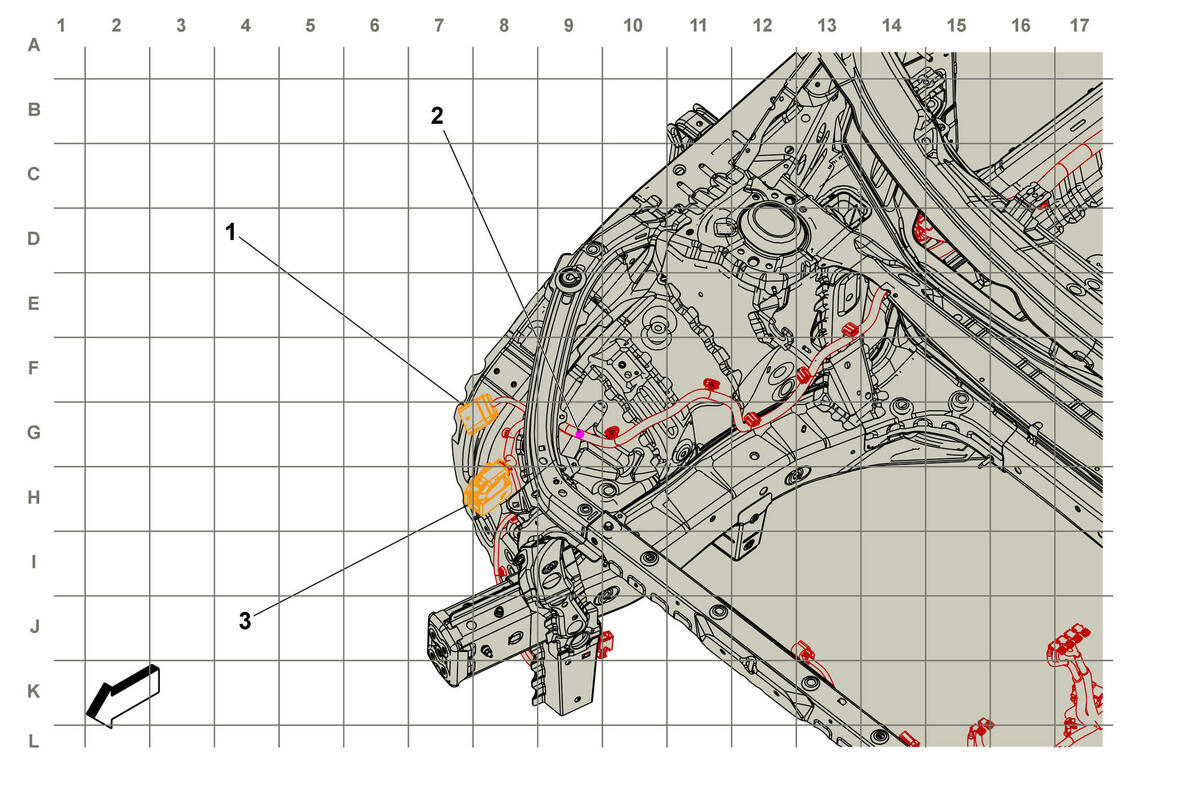

Engine Compartment Harness Routing - Right Side of the Engine Compartment
WARNING: This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
Engine Compartment Harness Routing - Right Side of the Engine Compartment
| Harness Name | Callout |
|---|---|
| X100 Front Fascia Harness to Body Harness X100 Front Fascia Harness to Body Harness (UD5/UFQ) | 1 |
| X101 Body Harness to Forward Lamp Harness X101 Body Harness to Forward Lamp Harness | 2 |
