Driver Door Trim Panel Harness Routing (Chevrolet)
WARNING: This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

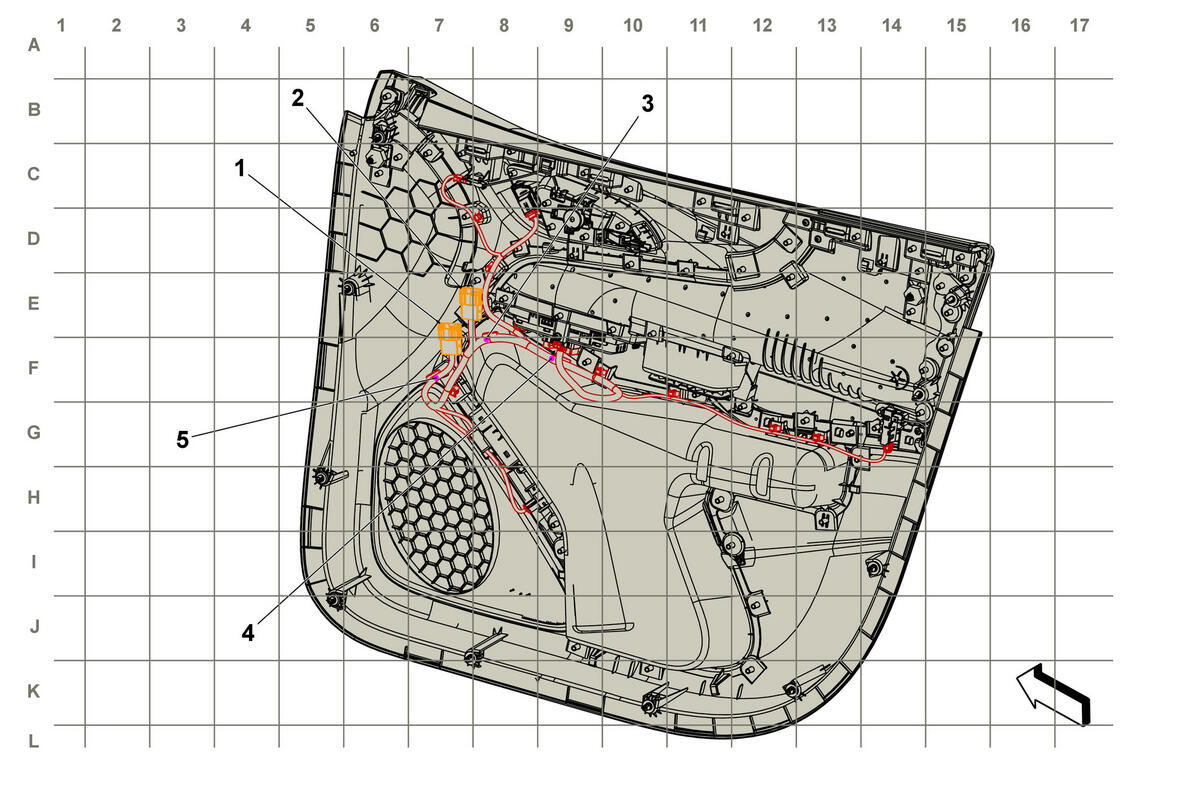

Driver Door Trim Panel Harness Routing (Chevrolet)
| Harness Name | Callout |
|---|---|
| X505 Driver Door Harness to Driver Door Trim Harness X505 Driver Door Harness to Driver Door Trim Harness | 1 |
| X506 Driver Door Harness to Driver Door Trim Harness X506 Driver Door Harness to Driver Door Trim Harness | 2 |
| J507 Driver Door Trim Harness | 3 |
| J505 Driver Door Trim Harness | 4 |
| J506 Driver Door Trim Harness | 5 |
