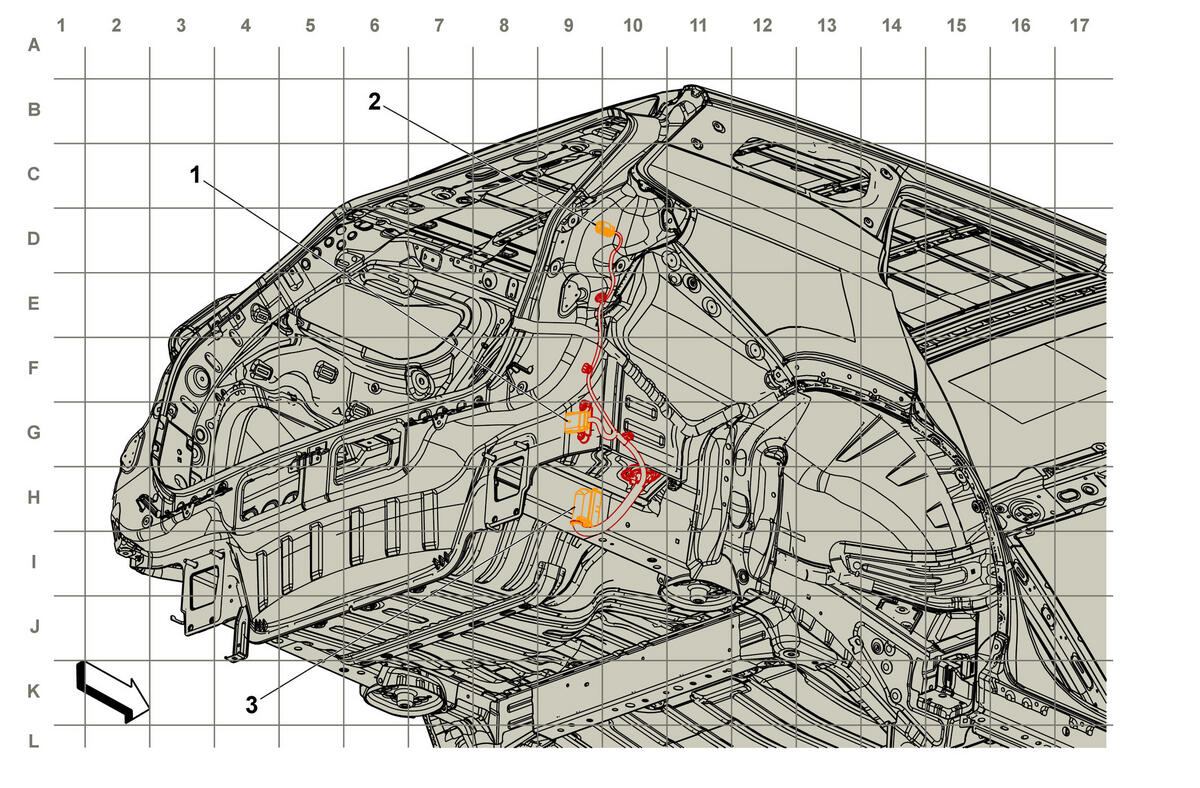

Body Harness Routing - Right Rear Underbody
WARNING: This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. X400 Rear Fascia Harness to Body Harness X400 Rear Fascia Harness to Body Harness |
| 2. X420 Body Harness to Tail Lamp Assembly - Right X420 Body Harness to Tail Lamp Assembly - Right (Z88+V9V) , or X420 Body Harness to Tail Lamp Assembly - Right (Z88-V9V) |
| 3. X402 Body Harness to Chassis Harness X402 Body Harness to Chassis Harness (X88+F48) , or X402 Body Harness to Chassis Harness (X88-F48) , or X402 Body Harness to Chassis Harness (Z88) |
