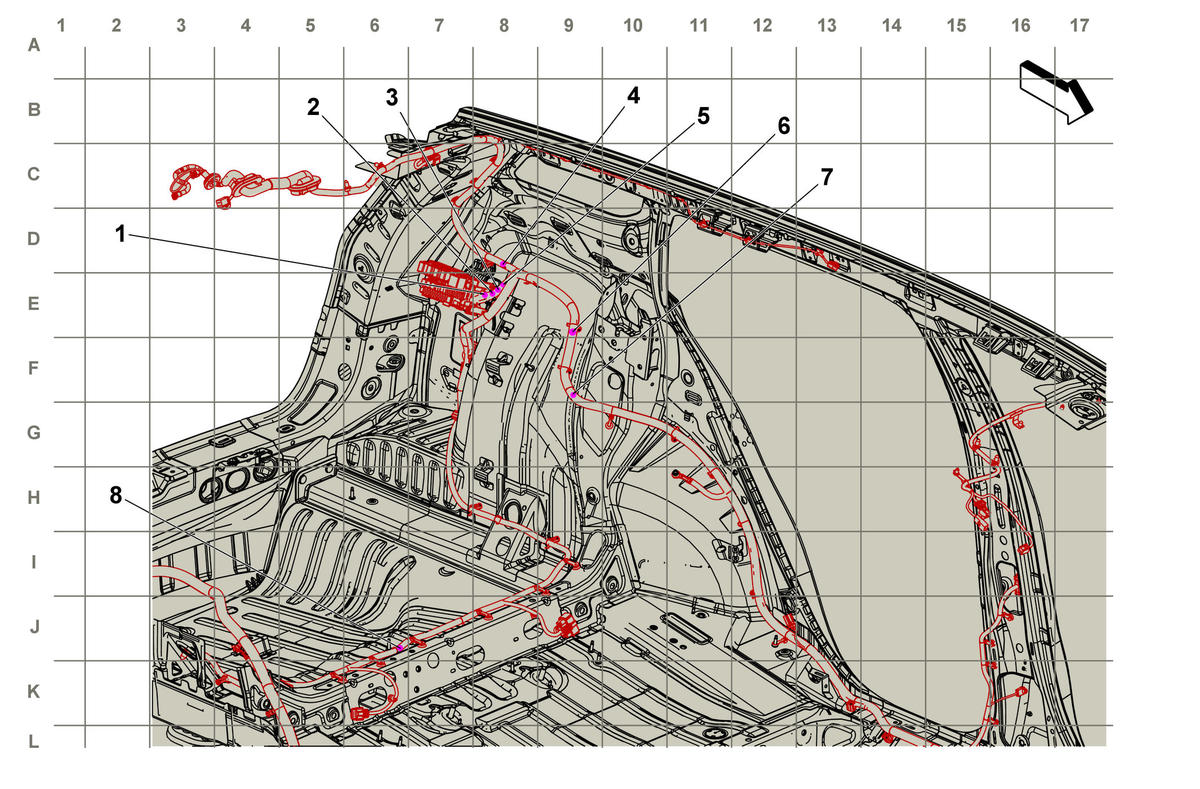

Body Harness Routing - Left Rear of the Passenger Compartment
WARNING: This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
Body Harness Routing - Left Rear of the Passenger Compartment
| Harness Name |
Callout |
| J400 Body Harness |
1 |
| J401 Body Harness |
2 |
| J402 Body Harness |
3 |
| J404 Body Harness |
4 |
| J403 Body Harness |
5 |
| J409 Body Harness |
6 |
| J407 Body Harness |
7 |
| J406 Body Harness |
8 |
