Wheels/Vehicle Underbody Component Views: Underbody
WARNING: This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

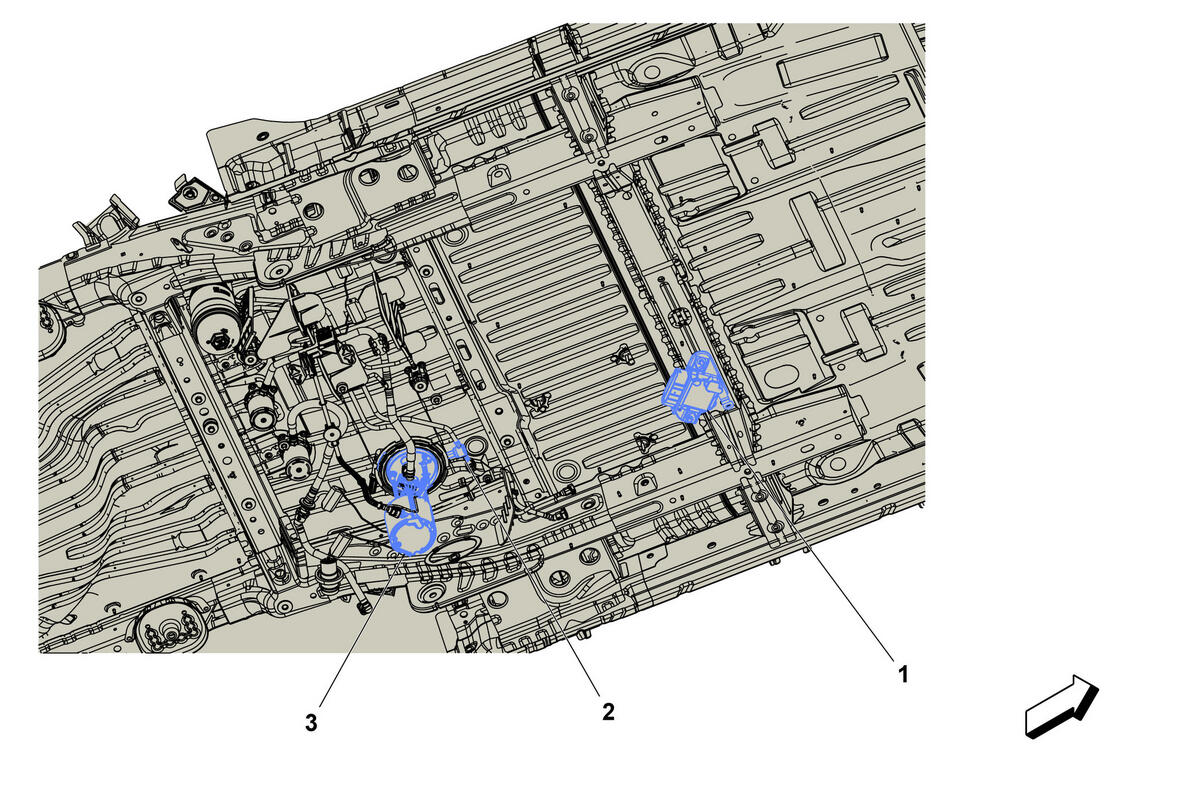

Underbody
| Items |
|---|
| 1. K111 Fuel Pump Driver Control Module K111 Fuel Pump Driver Control Module . |
| 2. B47 Fuel Pressure Sensor B47 Fuel Pressure Sensor . |
| 3. A7 Fuel Pump and Level Sensor Assembly A7 Fuel Pump and Level Sensor Assembly (F48) , or A7 Fuel Pump and Level Sensor Assembly (FWD) . |
