Rear Underbody/Trailer Connector (without V92)

WARNING: This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

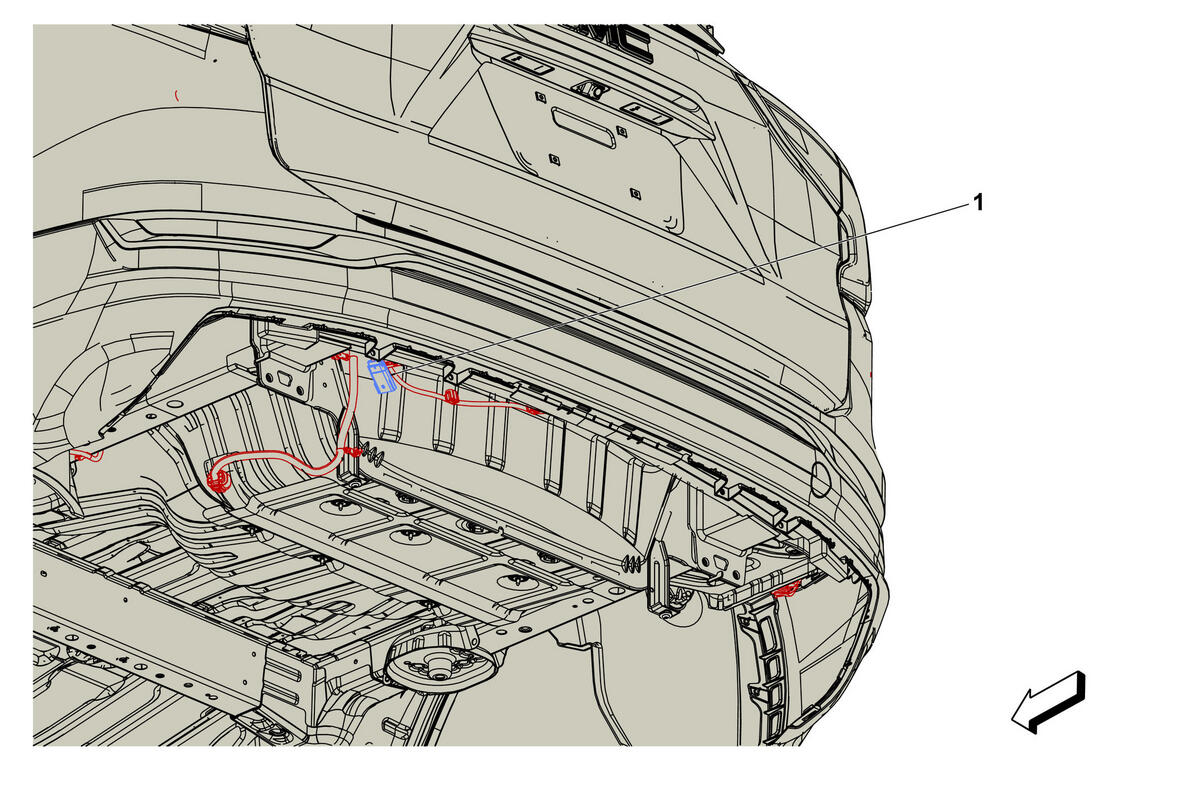

GM4585915Courtesy of GENERAL MOTORS COMPANY
Rear Underbody/Trailer Connector (without V92)

Items
1. X88 Trailer Connector
X88 Trailer Connector (-V92) , or
X88 Trailer Connector (V92) .
