Rear Chassis
WARNING: This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
Rear Chassis

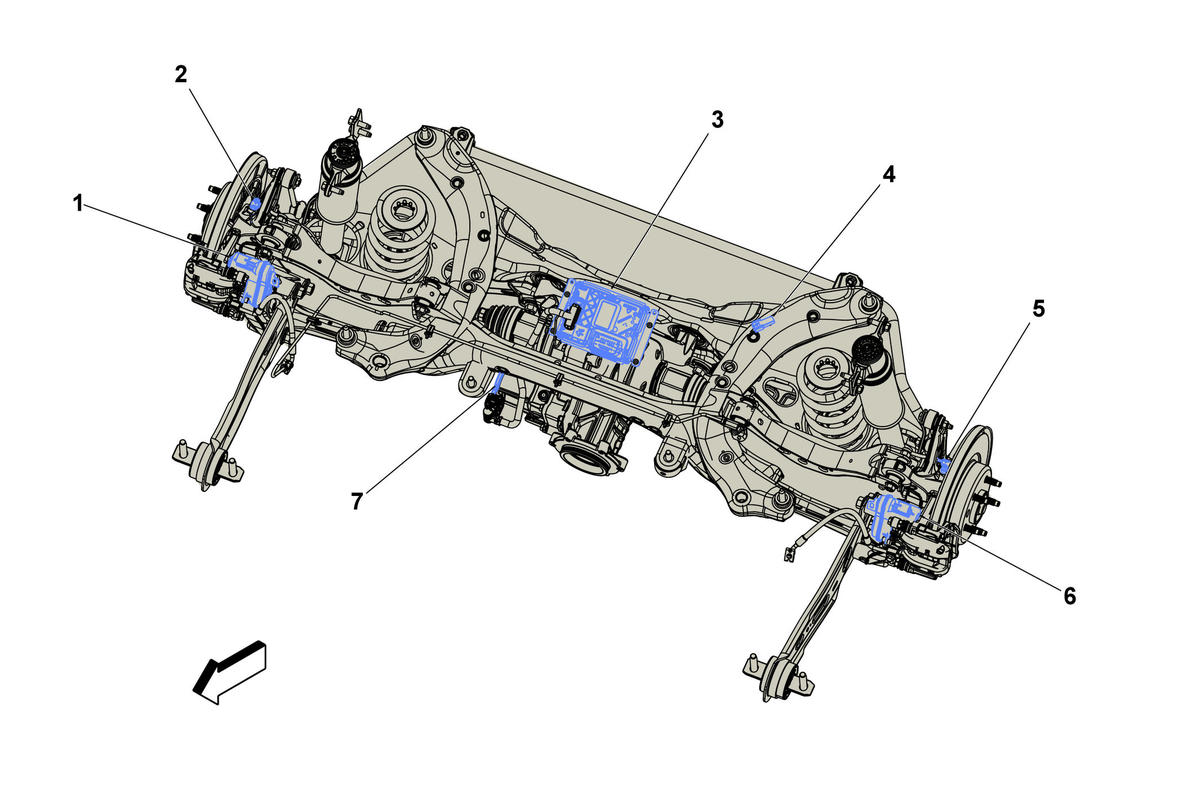

| Items |
|---|
| 1. B5RR Wheel Speed Sensor - Right Rear B5RR Wheel Speed Sensor - Right Rear . |
| 2. M104R Park Brake Actuator - Right M104R Park Brake Actuator - Right . |
| 3. K47 Rear Differential Clutch Control Module (F48) K47 Rear Differential Clutch Control Module X1 , or K47 Rear Differential Clutch Control Module X2 (F48) . |
| 4. R6A Terminating Resistor - High Speed Bus R6A Terminating Resistor - High Speed Bus . |
| 5. M104L Park Brake Actuator - Left M104L Park Brake Actuator - Left . |
| 6. B5LR Wheel Speed Sensor - Left Rear B5LR Wheel Speed Sensor - Left Rear . |
| 7. M32 Differential Clutch Pump (F48) M32 Differential Clutch Pump (F48) . |
