Left Rear Wheelwell

WARNING: This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

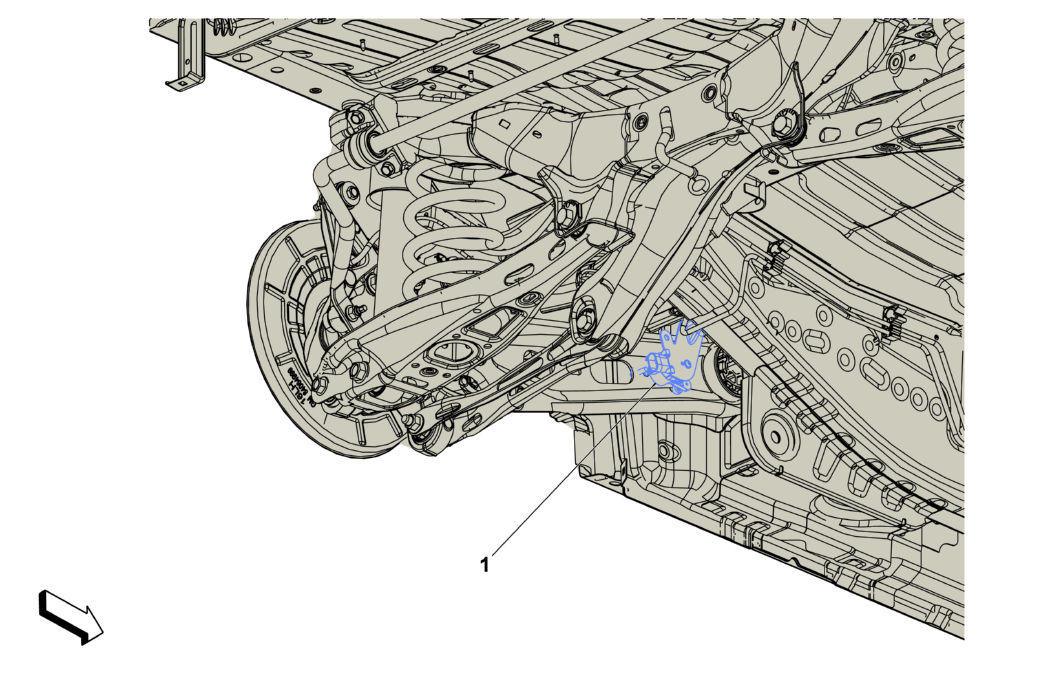

GM4622933Courtesy of GENERAL MOTORS COMPANY
Left Rear Wheelwell

Harness Name Callout
B51R Suspension Height Sensor - Rear (TR7) B51R Suspension Height Sensor - Rear . 1
