Left Front Wheelwell

WARNING: This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

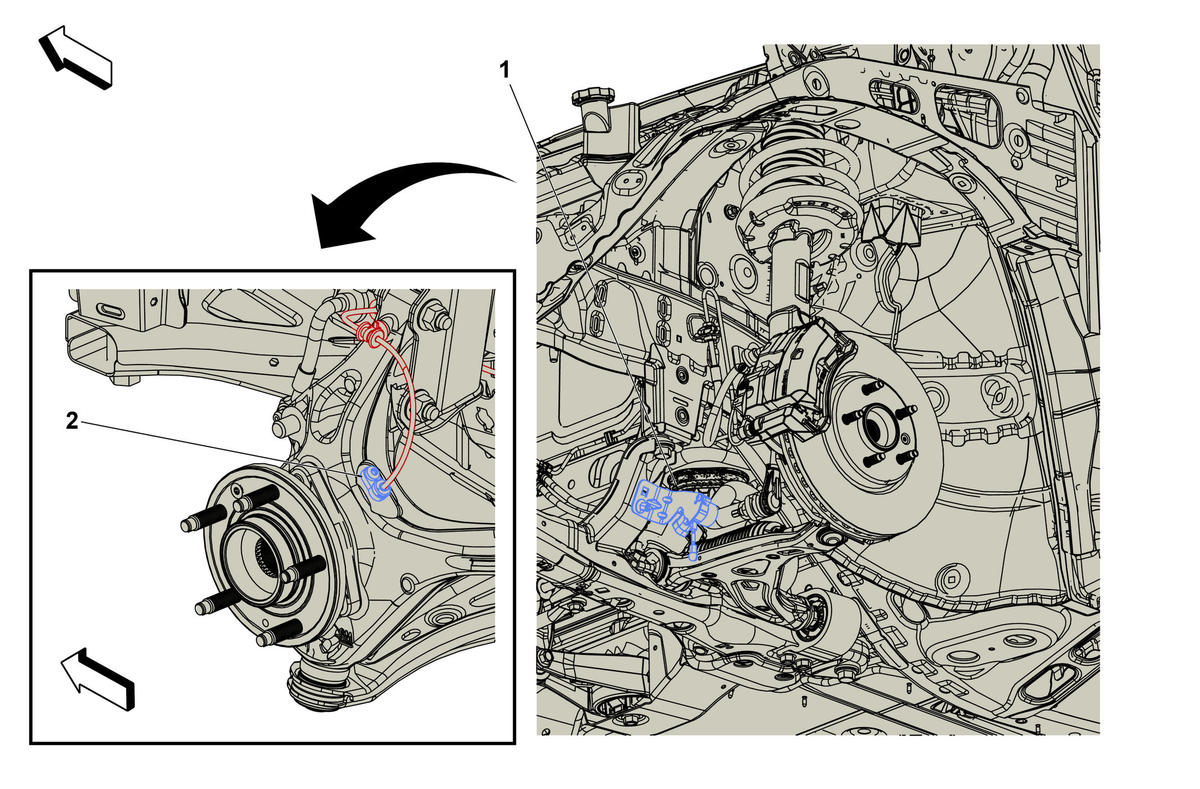

GM4585911Courtesy of GENERAL MOTORS COMPANY
Left Front Wheelwell

Items
1. B51F Suspension Height Sensor - Front (TR7)
B51F Suspension Height Sensor - Front (TR7) .
2. B5LF Wheel Speed Sensor - Left Front
B5LF Wheel Speed Sensor - Left Front
