Top of the Engine (LYX)
WARNING: This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

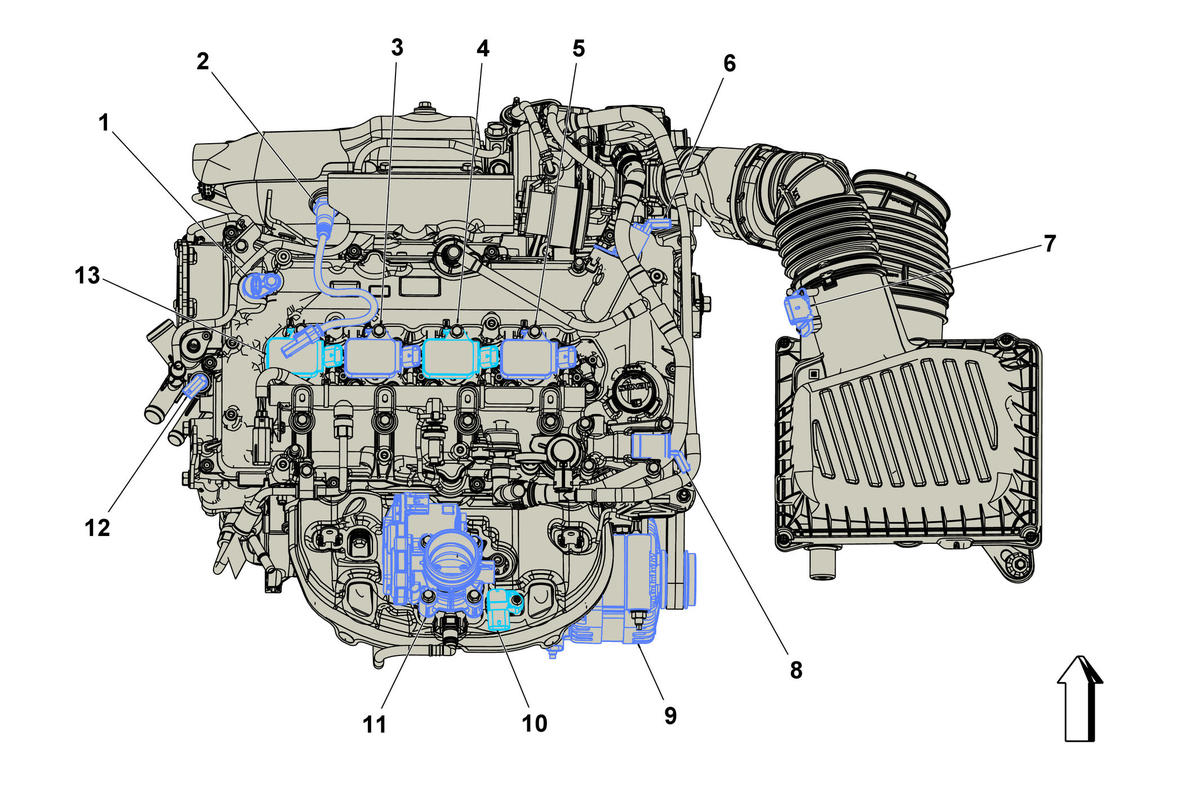

Top of the Engine (LYX)
| Items |
|---|
| 1. B23E Camshaft Position Sensor - Exhaust (LTG/LYX) B23E Camshaft Position Sensor - Exhaust . |
| 2. B52A Heated Oxygen Sensor 1 (LTG/LYX) B52A Heated Oxygen Sensor 1 (LYX) . |
| 3. T8C Ignition Coil 3 (LTG/LYX) T8C Ignition Coil 3 (LYX) . |
| 4. T8B Ignition Coil 2 (LTG/LYX) T8B Ignition Coil 2 (LYX) . |
| 5. T8A Ignition Coil 1 (LTG/LYX) T8A Ignition Coil 1 (LYX) . |
| 6. Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (LTG/LYX) Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (LYX) . |
| 7. B75C Multifunction Intake Air Sensor B75C Multifunction Intake Air Sensor) . |
| 8. Q84C Camshaft Position Actuator Park Lock Solenoid Valve - Intake (LYX) Q84C Camshaft Position Actuator Park Lock Solenoid Valve - Intake (LYX) . |
| 9. G13 Generator G13 Generator X1 , or G13 Generator X2 . |
| 10. B65 Intake Manifold Pressure and Air Temperature Sensor B65 Intake Manifold Pressure and Air Temperature Sensor . |
| 11. Q38 Throttle Body Q38 Throttle Body . |
| 12. B34 Engine Coolant Temperature Sensor B34 Engine Coolant Temperature Sensor (LYX) . |
| 13. T8D Ignition Coil 4 (LTG/LYX) T8D Ignition Coil 4 (LYX) . |
