Right Front of the Transmission (M3D/M3H/M3U)

WARNING: This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

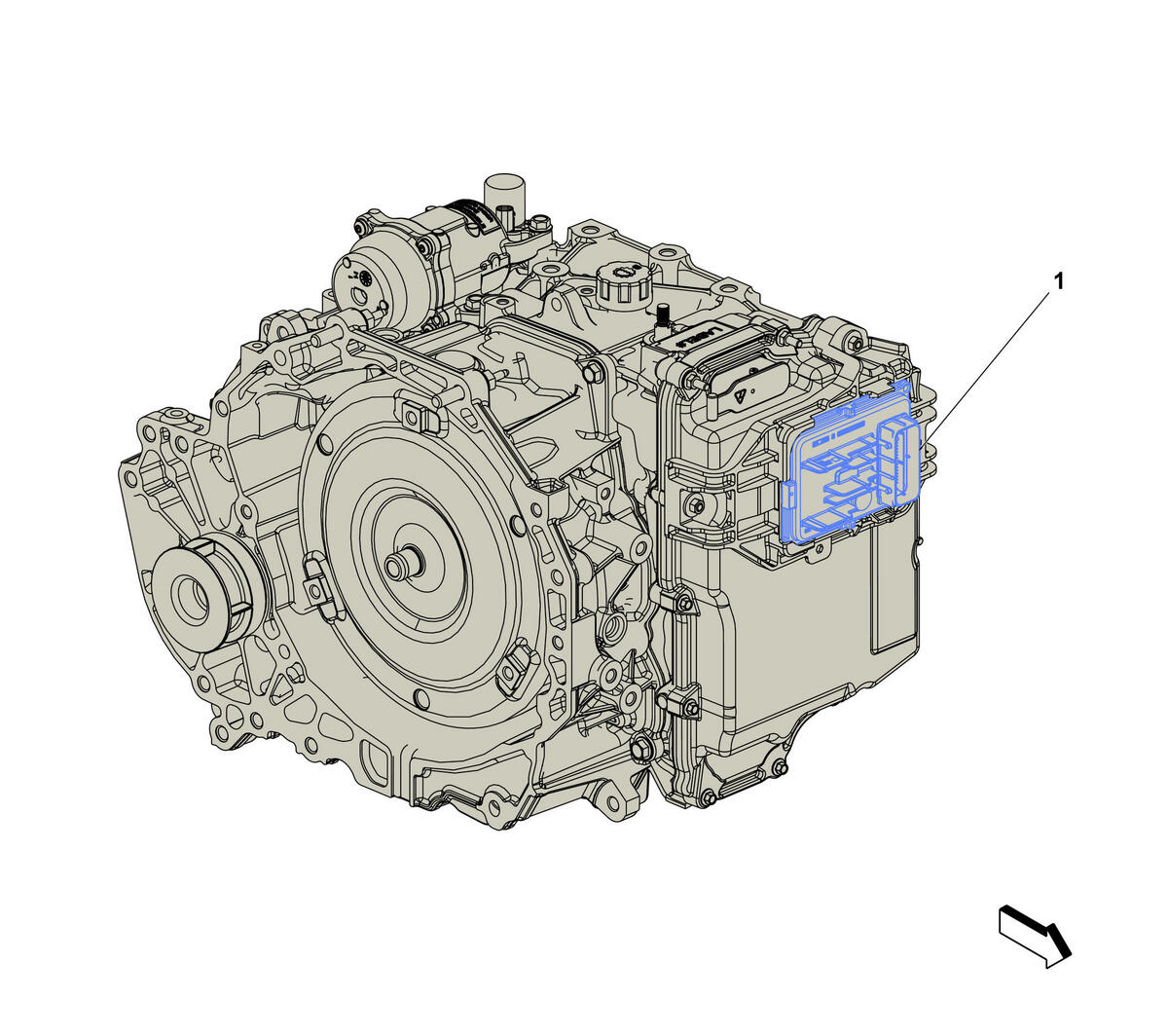

GM4648657Courtesy of GENERAL MOTORS COMPANY
Right Front of the Transmission (M3D/M3H/M3U)

Items
1. K71 Transmission Control Module
K71 Transmission Control Module (M3H/M3U) .
