Left Rear of the Engine (LTG)
WARNING: This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

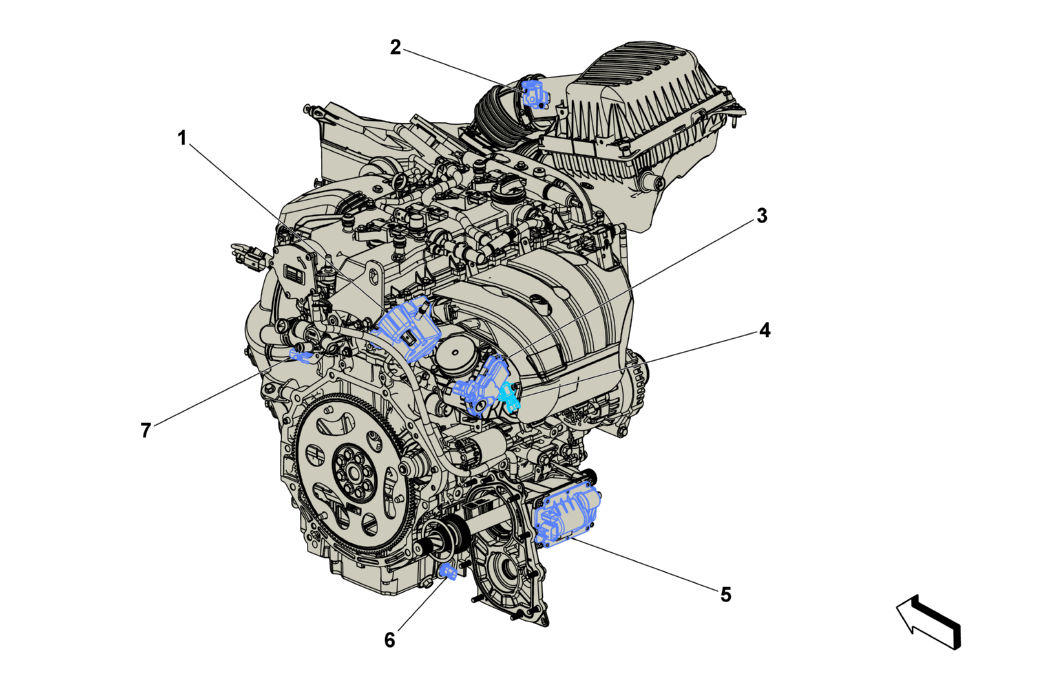

Left Rear of the Engine (LTG)
| Items |
|---|
| 1. G18 High Pressure Fuel Pump (LTG/LYX) G18 High Pressure Fuel Pump . |
| 2. B75C Multifunction Intake Air Sensor B75C Multifunction Intake Air Sensor . |
| 3. Q38 Throttle Body Q38 Throttle Body . |
| 4. B74 Manifold Absolute Pressure Sensor (LTG) B74 Manifold Absolute Pressure Sensor (LTG) . |
| 5. M115 Power Transfer Unit Shift Actuator (F48) M115 Power Transfer Unit Shift Actuator X1 (F48) , or M115 Power Transfer Unit Shift Actuator X2 (F48) . |
| 6. B35 Engine Oil Level Switch B35 Engine Oil Level Switch . |
| 7. Q44 Engine Oil Pressure Control Solenoid Valve Q44 Engine Oil Pressure Control Solenoid Valve (LTG) . |
