Left Front of the Transmission/Input Speed Sensor (MNH/MNK)

WARNING: This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

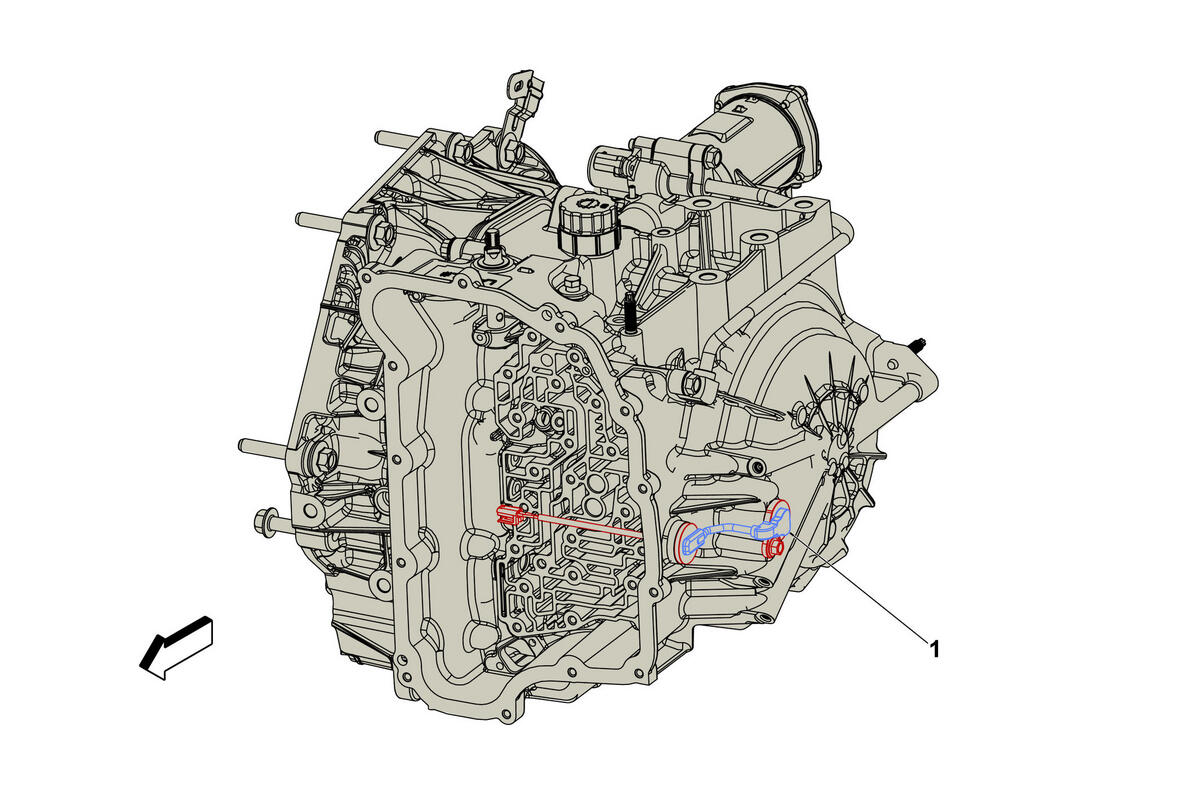

GM4595287Courtesy of GENERAL MOTORS COMPANY
Left Front of the Transmission/Input Speed Sensor (MNH/MNK)

Harness Name Callout
B14C Transmission Input Shaft Speed Sensor 1
