Bottom of Engine (LYX)

WARNING: This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

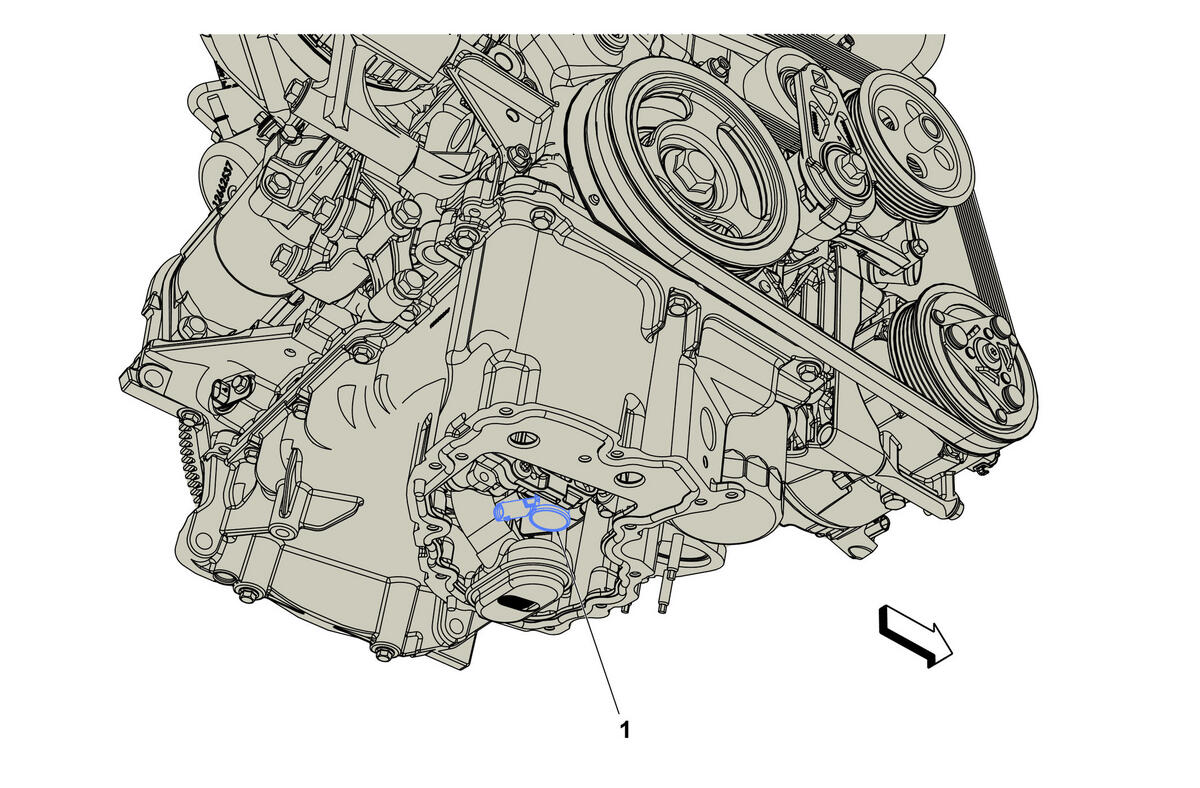

GM4822359Courtesy of GENERAL MOTORS COMPANY
Bottom of Engine (LYX)

Items
1. Q44 Engine Oil Pressure Control Solenoid Valve
Q44 Engine Oil Pressure Control Solenoid Valve (LYX) .
