Right Side of the Passenger Compartment

WARNING: This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

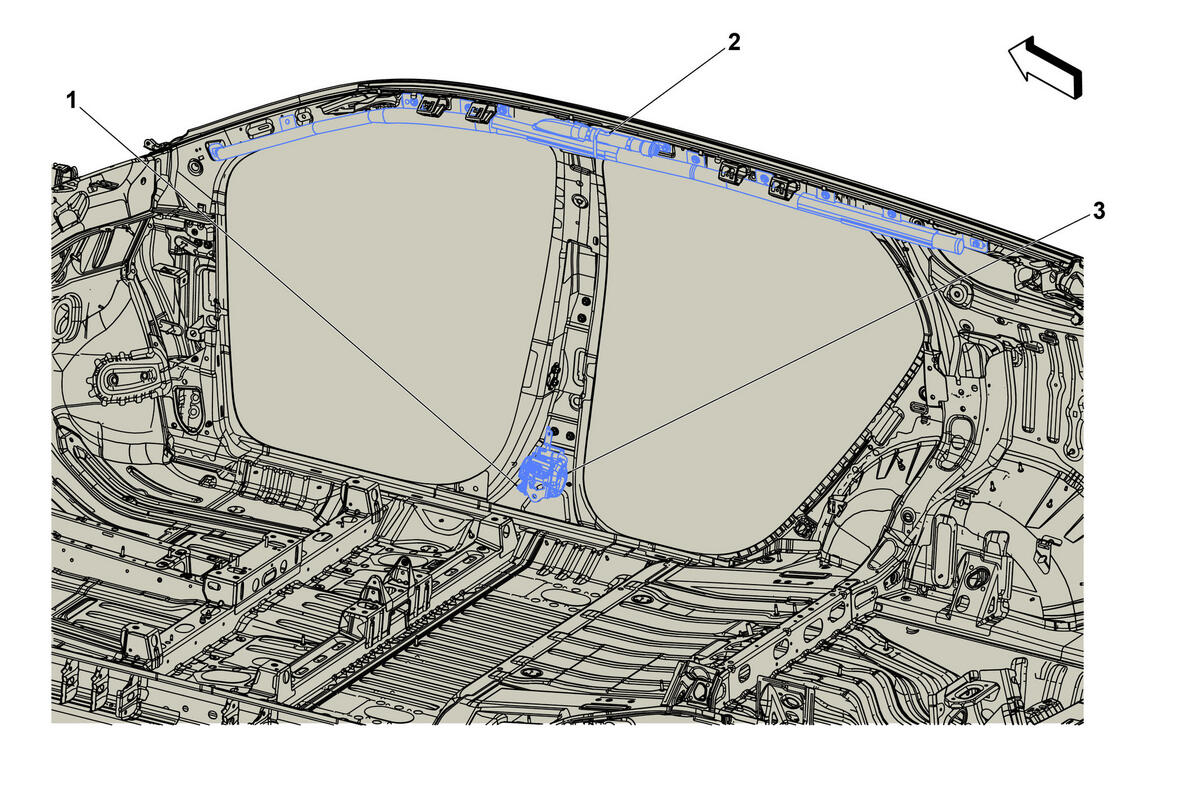

GM4585885Courtesy of GENERAL MOTORS COMPANY
Right Side of the Passenger Compartment

Items
1. B61P Seat Belt Tension Sensor - Passenger (AL0)
B61P Seat Belt Tension Sensor - Passenger (AL0) .
2. F105R Roof Rail Air Bag - Right (AY0)
F105R Roof Rail Air Bag - Right (AY0) .
3. F112P Seat Belt Retractor Pretensioner - Passenger
F112P Seat Belt Retractor Pretensioner - Passenger .
