Right Rear Seat

WARNING: This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
GM4597516Courtesy of GENERAL MOTORS COMPANY

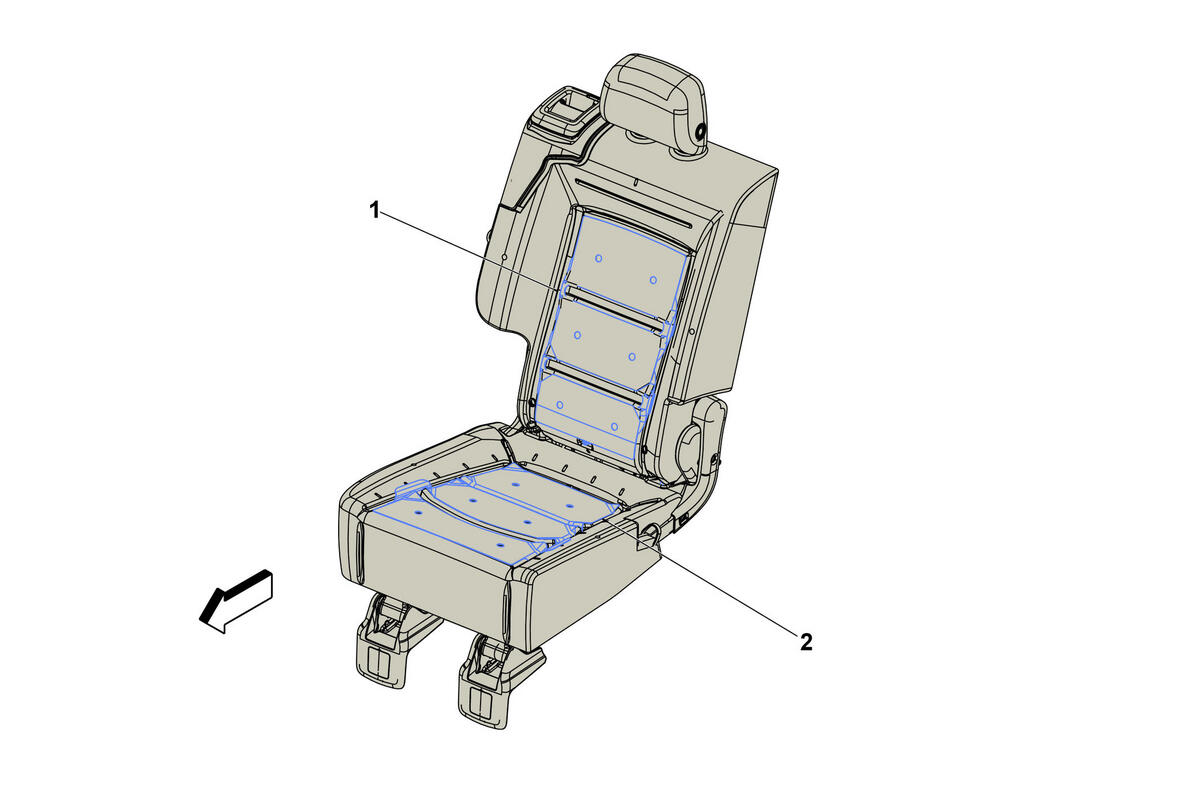

Right Rear Seat

Items
1. E14G Seat Heating Element - Right Rear Back (KA6)
E14G Seat Heating Element - Right Rear Back (KA6) .
2. E14H Seat Heating Element - Right Rear Cushion (KA6)
E14H Seat Heating Element - Right Rear Cushion (KA6) .
