Passenger Seat (4 of 4)

WARNING: This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

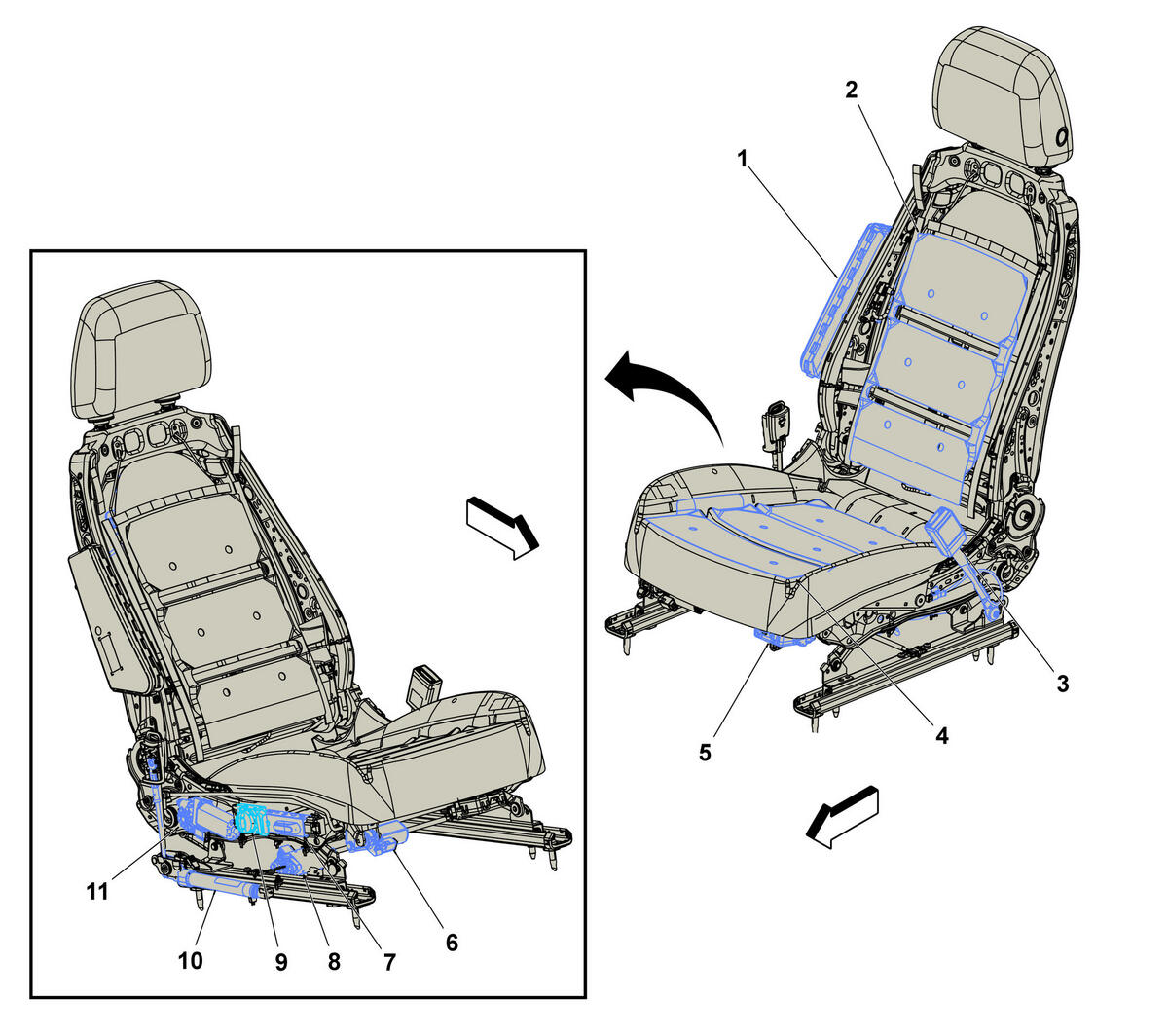

Items
1. F106P Seat Side Air Bag - Passenger F106P Seat Side Air Bag - Passenger .
2. E14C Seat Heating Element - Passenger Back (KA1) E14C Seat Heating Element - Passenger Back .
3. B153P Seat Belt Buckle - Passenger
4. E14D Seat Heating Element - Passenger Cushion (KA1) E14D Seat Heating Element - Passenger Cushion .
5. K29F Seat Heating Control Module - Front (KA1) K29F Seat Heating Control Module - Front X1 , or K29F Seat Heating Control Module - Front X2 .
6. M50P Seat Front Vertical Motor - Passenger (ADT/AG2) M50P Seat Front Vertical Motor - Passenger .
7. S64P Seat Adjuster Switch - Passenger (AG2) S64P Seat Adjuster Switch - Passenger (ADT) , or S64P Seat Adjuster Switch - Passenger (AG2) .
8. M51P Seat Horizontal Motor - Passenger (ADT/AG2) M51P Seat Horizontal Motor - Passenger .
9. S65P Seat Lumbar Support Switch - Passenger (AT9) S65P Seat Lumbar Support Switch - Passenger .
10. F113P Seat Belt Anchor Pretensioner - Passenger F113P Seat Belt Anchor Pretensioner - Passenger .
11. M55P Seat Rear Vertical Motor - Passenger (ADT/AG2) M55P Seat Rear Vertical Motor - Passenger .
