Left Rear of the Passenger Compartment

WARNING: This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

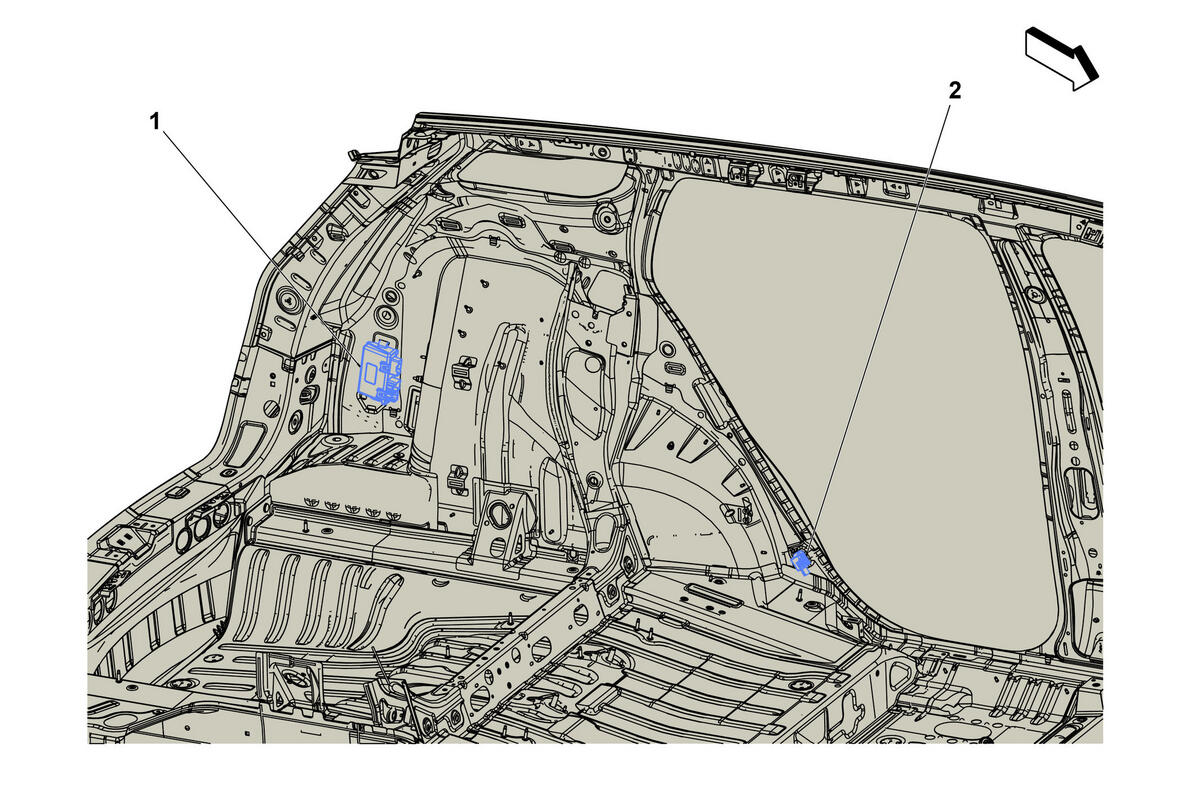

GM4585892Courtesy of GENERAL MOTORS COMPANY
Left Rear of the Passenger Compartment

Items
1. K39 Liftgate Control Module (TB5/TC2)
K39 Liftgate Control Module X1 (TB5) , or
K39 Liftgate Control Module X2 (TB5) , or
K39 Liftgate Control Module X3 (TB5) .
2. B63LR Side Impact Sensor - Left Rear
B63LR Side Impact Sensor - Left Rear
