Left Front of the Passenger Compartment (1 of 2)
WARNING: This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

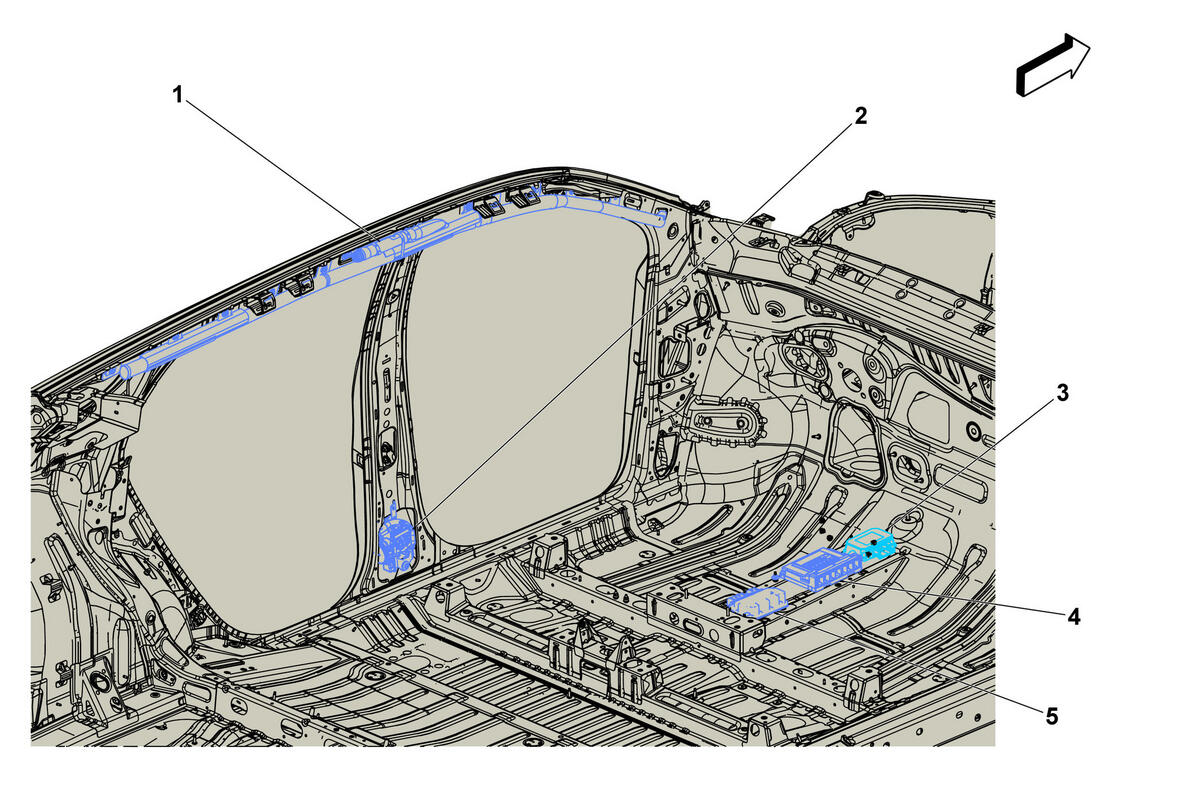

Left Front of the Passenger Compartment (1 of 2)
| Items |
|---|
| 1. F105L Roof Rail Air Bag - Left (AY0) F105L Roof Rail Air Bag - Left (AY0) . |
| 2. F112D Seat Belt Retractor Pretensioner - Driver F112D Seat Belt Retractor Pretensioner - Driver |
| 3. T19 Power Supply Transformer (KL9) T19 Power Supply Transformer (KL9) |
| 4. K9 Body Control Module K9 Body Control Module X1 , or K9 Body Control Module X2 , or K9 Body Control Module X3 , or K9 Body Control Module X4 , or K9 Body Control Module X5 , or K9 Body Control Module X6 , or K9 Body Control Module X7 . |
| 5. K36 Inflatable Restraint Sensing and Diagnostic Module K36 Inflatable Restraint Sensing and Diagnostic Module X1 , or K36 Inflatable Restraint Sensing and Diagnostic Module X2 . |
