Front of the Passenger Compartment

WARNING: This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

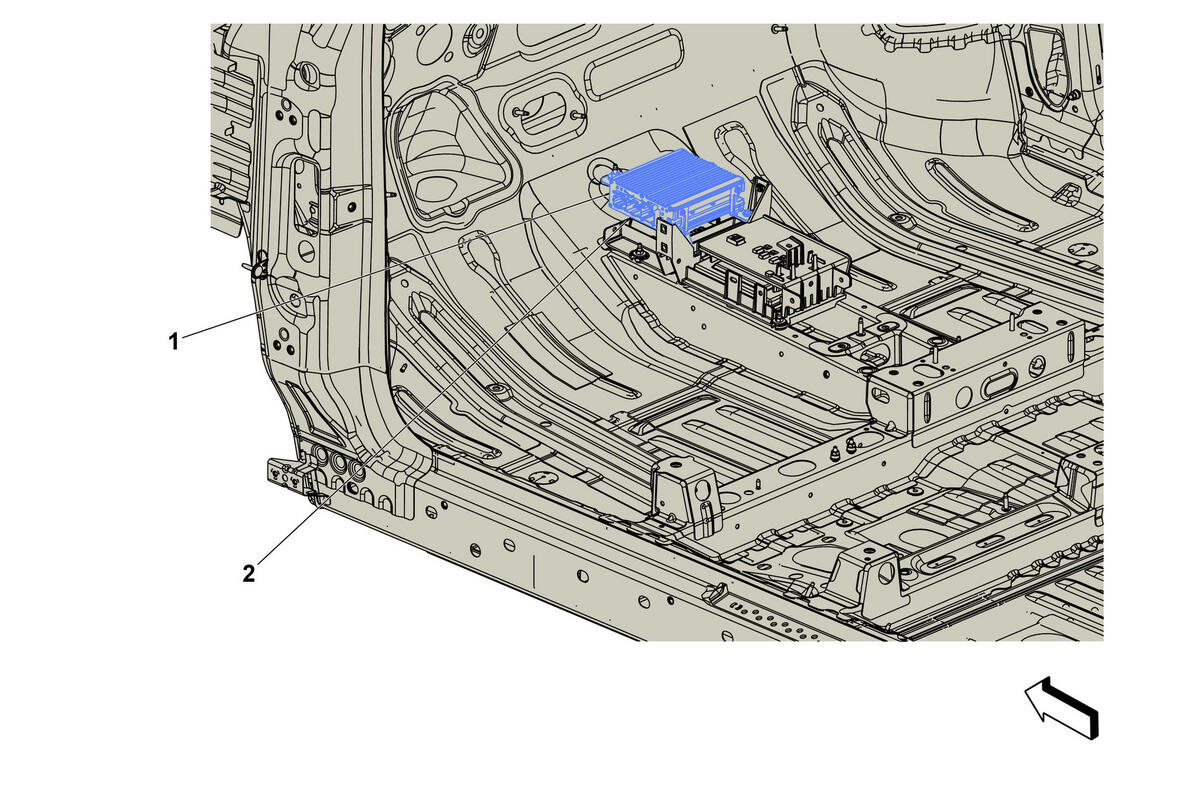

GM4585878Courtesy of GENERAL MOTORS COMPANY
Front of the Passenger Compartment

Items
1. T3 Audio Amplifier (UQA)
T3 Audio Amplifier X1 (UQA+(IOS/IOT/IOU)) , or
T3 Audio Amplifier X2 (UQA+(IOS/IOT/IOU)) , or
T3 Audio Amplifier X3 (UQA+(IOS/IOT/IOU)) , or
T3 Audio Amplifier X4 (UQA+(IOS/IOT/IOU)) .
2. K108 Active Noise Cancellation Module (NKC and UZ6 without IOR)
K108 Active Noise Cancellation Module X1 (NKC+UZ6) , or
K108 Active Noise Cancellation Module X2 (NKC+UZ6) , or
K108 Active Noise Cancellation Module X3 (NKC+UZ6) .
