Driver Seat (3 of 3)

WARNING: This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

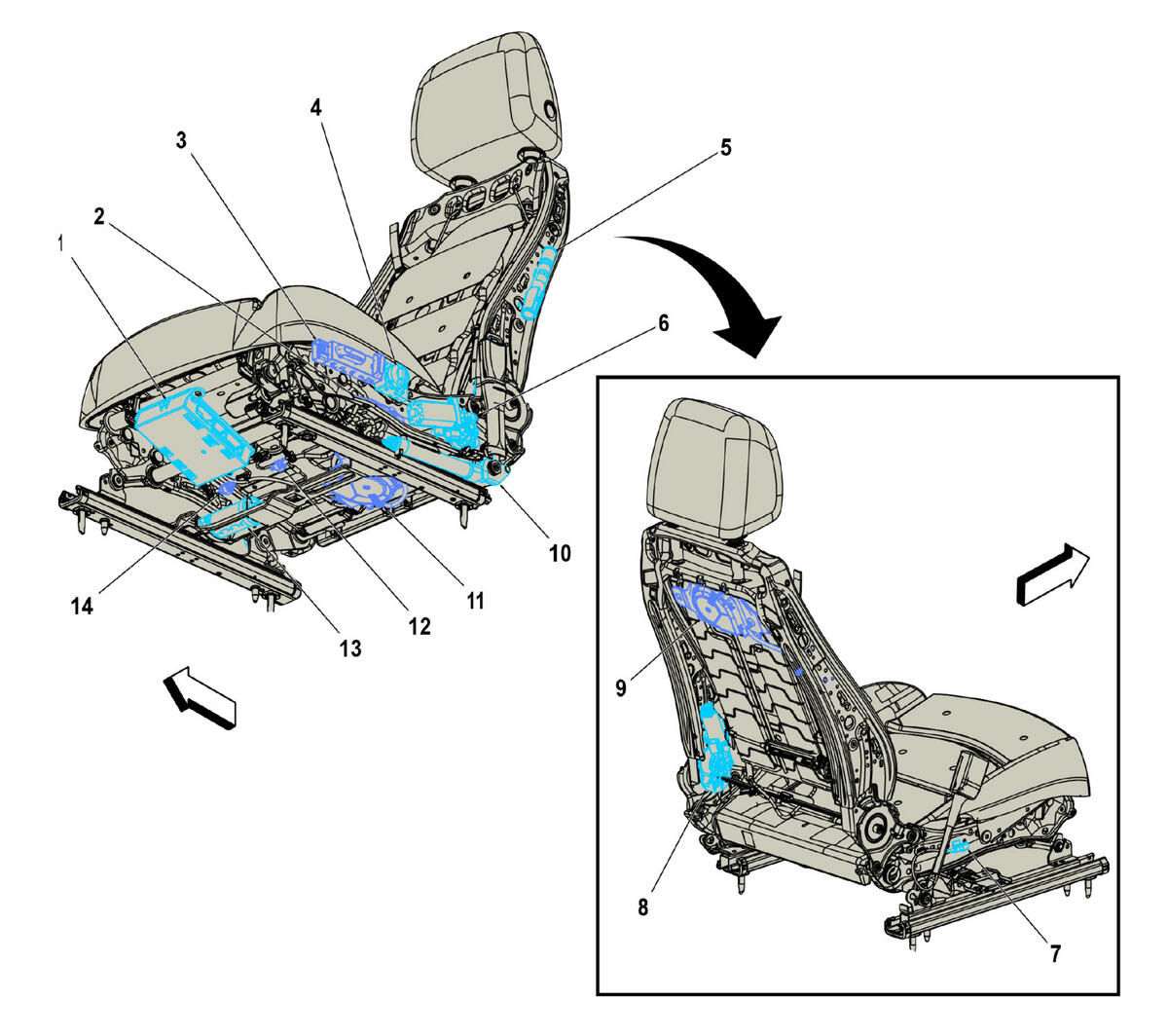

Items
1. K40D Seat Memory Control Module - Driver (A45/A74) K40D Seat Memory Control Module - Driver X1 , or K40D Seat Memory Control Module - Driver X2 , or K40D Seat Memory Control Module - Driver X3 , or K40D Seat Memory Control Module - Driver X5 , or K40D Seat Memory Control Module - Driver X6 .
2. M53D Seat Lumbar Support Motor - Driver (AL9) M53D Seat Lumbar Support Motor - Driver .
3. S64D Seat Adjuster Switch - Driver (AG1) S64D Seat Adjuster Switch - Driver .
4. S65D Seat Lumbar Support Switch - Driver (AL9) S65D Seat Lumbar Support Switch - Driver .
5. F106D Seat Side Air Bag - Driver F106D Seat Side Air Bag - Driver .
6. M55D Seat Rear Vertical Motor - Driver (A45/AG1) M55D Seat Rear Vertical Motor - Driver .
7. B153D Seat Belt Buckle - Driver
8. M56D Seat Recline Motor - Driver (A45/AG1) M56D Seat Recline Motor - Driver .
9. M73A Seat Blower Motor - Driver Back (KU1) M73A Seat Blower Motor - Driver Back .
10. F113D Seat Belt Anchor Pretensioner - Driver F113D Seat Belt Anchor Pretensioner - Driver .
11. M73C Seat Blower Motor - Driver Cushion (KU1) M73C Seat Blower Motor - Driver Cushion
12. P45LR Seat Haptic Movement Motor - Driver Left Rear (UEU) P45LR Seat Haptic Movement Motor - Driver Left Rear .
13. M51D Seat Horizontal Motor - Driver (A45/AG1) M51D Seat Horizontal Motor - Driver .
14. P45RR Seat Haptic Movement Motor - Driver Right Rear (UEU) P45RR Seat Haptic Movement Motor - Driver Right Rear .
