Driver Seat (2 of 3)

WARNING: This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

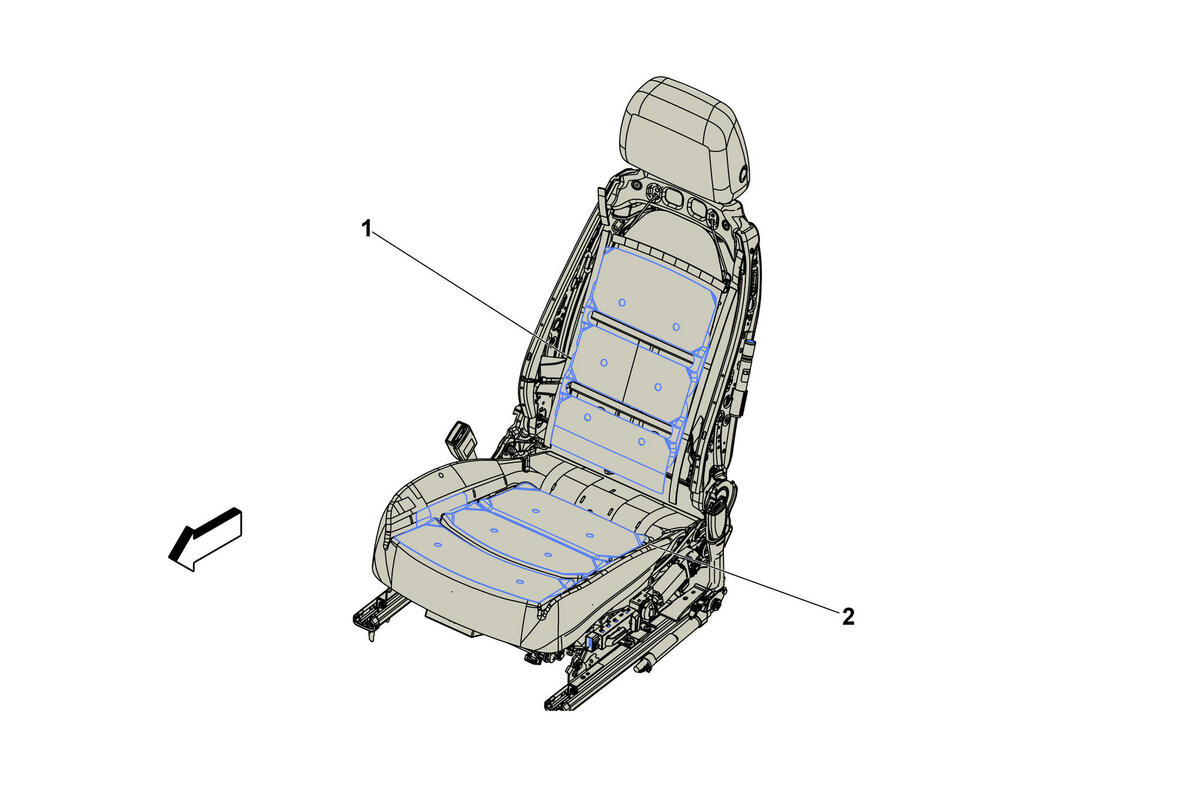

GM4597502Courtesy of GENERAL MOTORS COMPANY
Driver Seat (2 of 3)

Items
1. E14A Seat Heating Element - Driver Back (KA1)
E14A Seat Heating Element - Driver Back .
2. E14B Seat Heating Element - Driver Cushion (KA1)
E14B Seat Heating Element - Driver Cushion .
