Driver Seat (1 of 3)
WARNING: This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

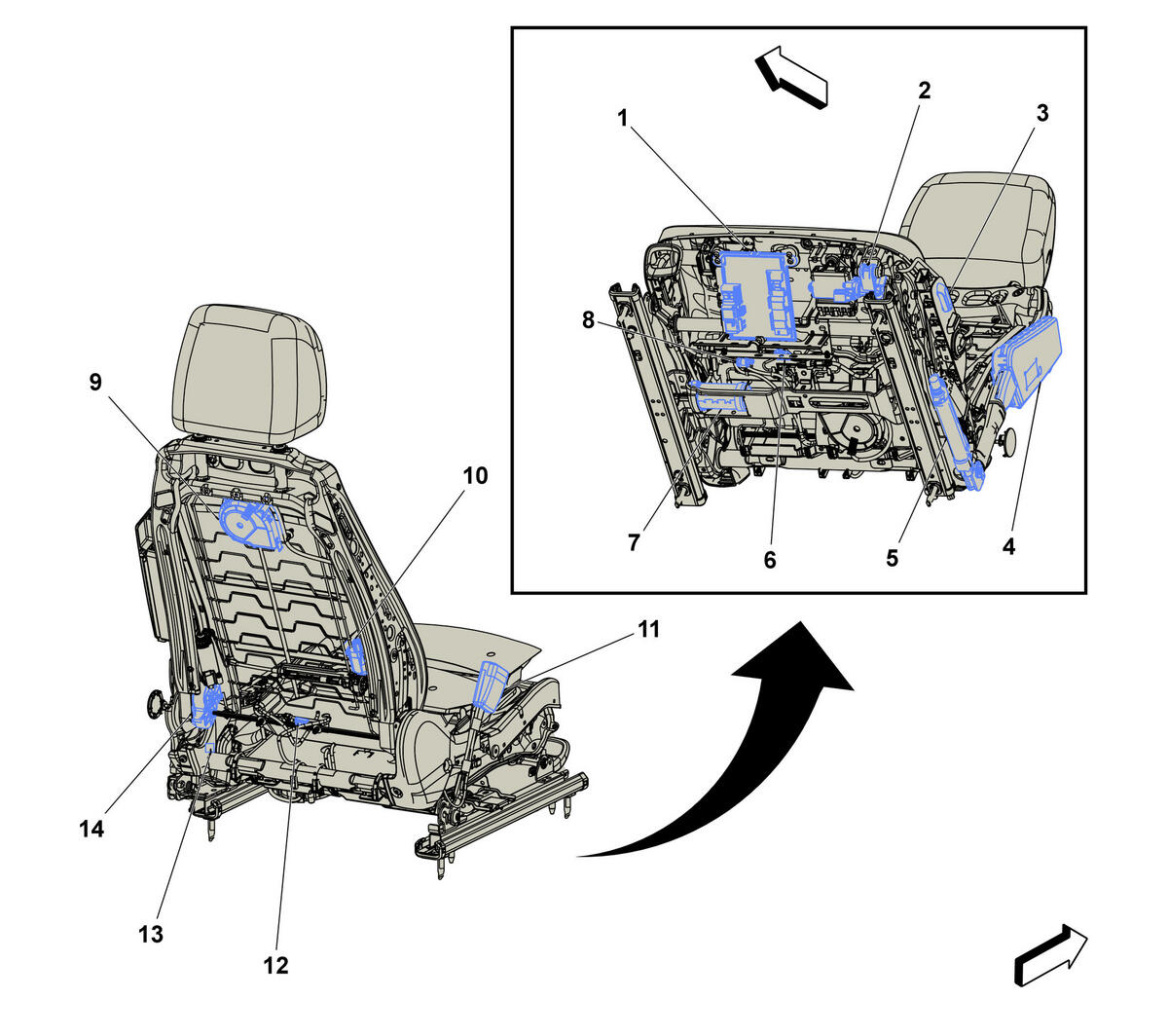

Driver Seat (1 of 3)
| Items |
|---|
| 1. K40D Seat Memory Control Module - Driver (A45/A74) K40D Seat Memory Control Module - Driver X1 , or K40D Seat Memory Control Module - Driver X2 , or K40D Seat Memory Control Module - Driver X3 , or K40D Seat Memory Control Module - Driver X5 , or K40D Seat Memory Control Module - Driver X6 . |
| 2. M50D Seat Front Vertical Motor - Driver (A45/AG1) M50D Seat Front Vertical Motor - Driver . |
| 3. S64D Seat Adjuster Switch - Driver (AG1) S64D Seat Adjuster Switch - Driver . |
| 4. F106D Seat Side Air Bag - Driver F106D Seat Side Air Bag - Driver . |
| 5. F113D Seat Belt Anchor Pretensioner - Driver F113D Seat Belt Anchor Pretensioner - Driver . |
| 6. E14B Seat Heating Element - Driver Cushion (KA1) E14B Seat Heating Element - Driver Cushion . |
| 7. M51D Seat Horizontal Motor - Driver (A45/AG1) M51D Seat Horizontal Motor - Driver . |
| 8. P45RR Seat Haptic Movement Motor - Driver Right Rear (UEU) P45RR Seat Haptic Movement Motor - Driver Right Rear . |
| 9. M73A Seat Blower Motor - Driver Back (KU1) M73A Seat Blower Motor - Driver Back . |
| 10. M53D Seat Lumbar Support Motor - Driver (AL9) M53D Seat Lumbar Support Motor - Driver . |
| 11. B153D Seat Belt Buckle - Driver |
| 12. E14A Seat Heating Element - Driver Back (KA1) E14A Seat Heating Element - Driver Back . |
| 13. M55D Seat Rear Vertical Motor - Driver (A45/AG1) M55D Seat Rear Vertical Motor - Driver . |
| 14. M56D Seat Recline Motor - Driver (A45/AG1) M56D Seat Recline Motor - Driver . |
