Rear of the Vehicle/Fascia
WARNING: This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

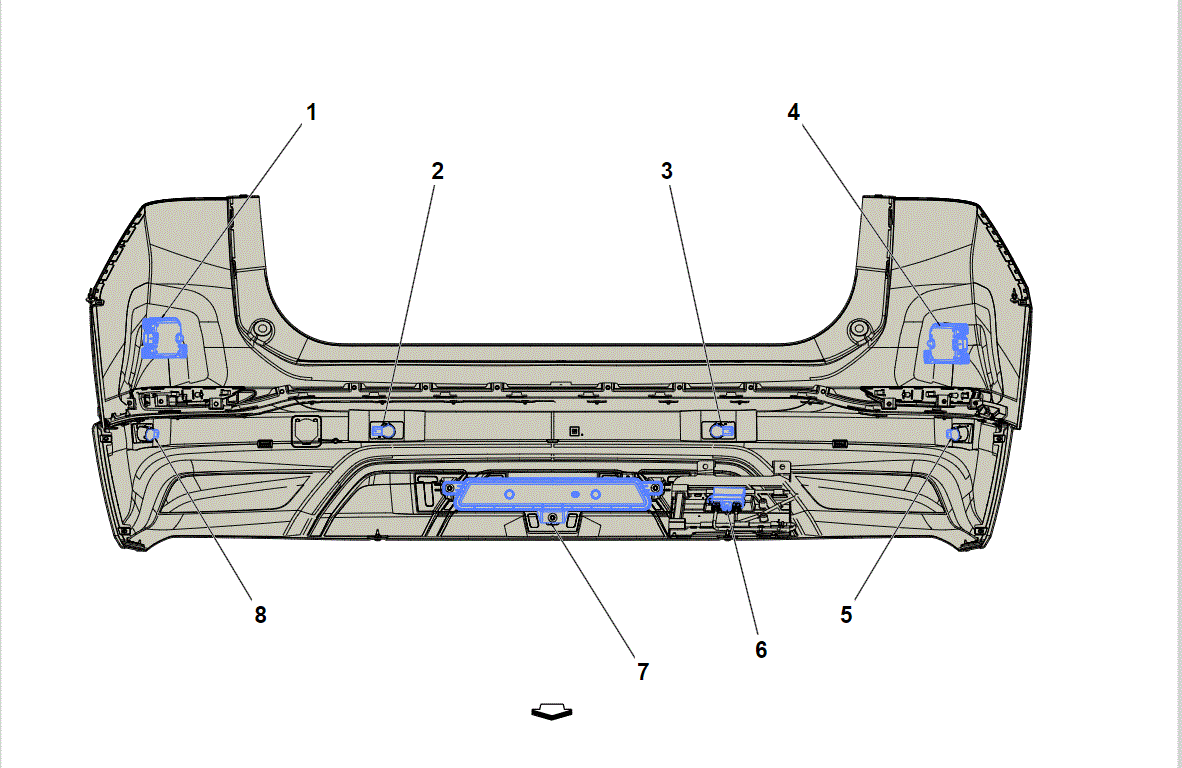

Rear of the Vehicle/Fascia
| Items |
|---|
| 1. B218R Side Object Sensor Module - Right (UKC) B218R Side Object Sensor Module - Right (UKC) . |
| 2. B306G Parking Assist Sensor - Rear Right Middle (UD5/UD7/UFQ) B306G Parking Assist Sensor - Rear Right Middle (UD5/UD7/UFQ) . |
| 3. B306F Parking Assist Sensor - Rear Left Middle (UD5/UD7/UFQ) B306F Parking Assist Sensor - Rear Left Middle (UD5/UD7/UFQ) . |
| 4. B218L Side Object Sensor Module - Left (UKC) B218L Side Object Sensor Module - Left (UKC) . |
| 5. B306E Parking Assist Sensor - Rear Left Outer (UD5/UD7/UFQ) B306E Parking Assist Sensor - Rear Left Outer (UD5/UD7/UFQ) . |
| 6. K171 Hands-Free Liftgate Sensor Control Module (TC2) K171 Hands-Free Liftgate Sensor Control Module X1 , or K171 Hands-Free Liftgate Sensor Control Module X2 (TC2) , or K171 Hands-Free Liftgate Sensor Control Module X3 (TC2) . |
| 7. E29R Fog Lamp - Rear (T79) |
| 8. B306H Parking Assist Sensor - Rear Right Outer (UD5/UD7/UFQ) B306H Parking Assist Sensor - Rear Right Outer (UD5/UD7/UFQ) . |
