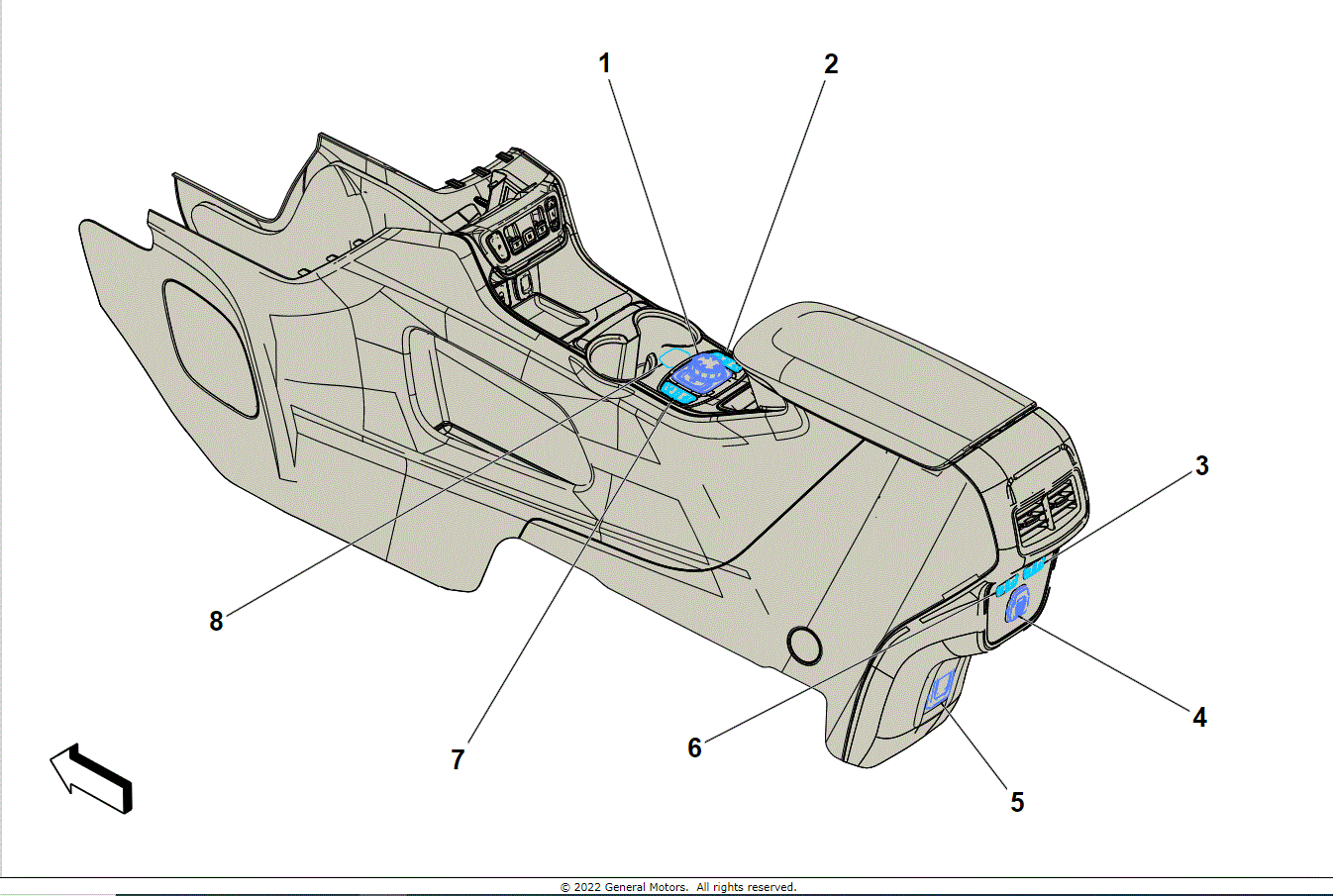

Top and Rear of the Center Console (GMC)

WARNING: This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Items
1. S126 Drive Mode Select Switch S126 Drive Mode Select Switch (-EPH) , or S126 Drive Mode Select Switch (EPH) .
2. S32P Seat Heating Switch - Passenger (Z88+KA1) S32P Seat Heating Switch - Passenger (KA1/KA6) .
3. S32RR Seat Heating Switch - Right Rear (KA6) S32RR Seat Heating Switch - Right Rear (KA6) .
4. X80L Accessory Power Receptacle - Center Console Rear (KPA) X80L Accessory Power Receptacle - Center Console Rear (KPA) .
5. X81 Accessory Power Receptacle - 110V AC (KI6) X81 Accessory Power Receptacle - 110V AC X1 (KI6) , or X81 Accessory Power Receptacle - 110V AC X2 (KI6) .
6. S32LR Seat Heating Switch - Left Rear (KA6) S32LR Seat Heating Switch - Left Rear (KA6) .
7. S32D Seat Heating Switch - Driver (Z88+KA1) S32D Seat Heating Switch - Driver (KA1) .
8. S107 Parking Assist On/Off Switch (UFQ) S107 Parking Assist On/Off Switch (UD5) .
