Steering Wheel Controls

WARNING: This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

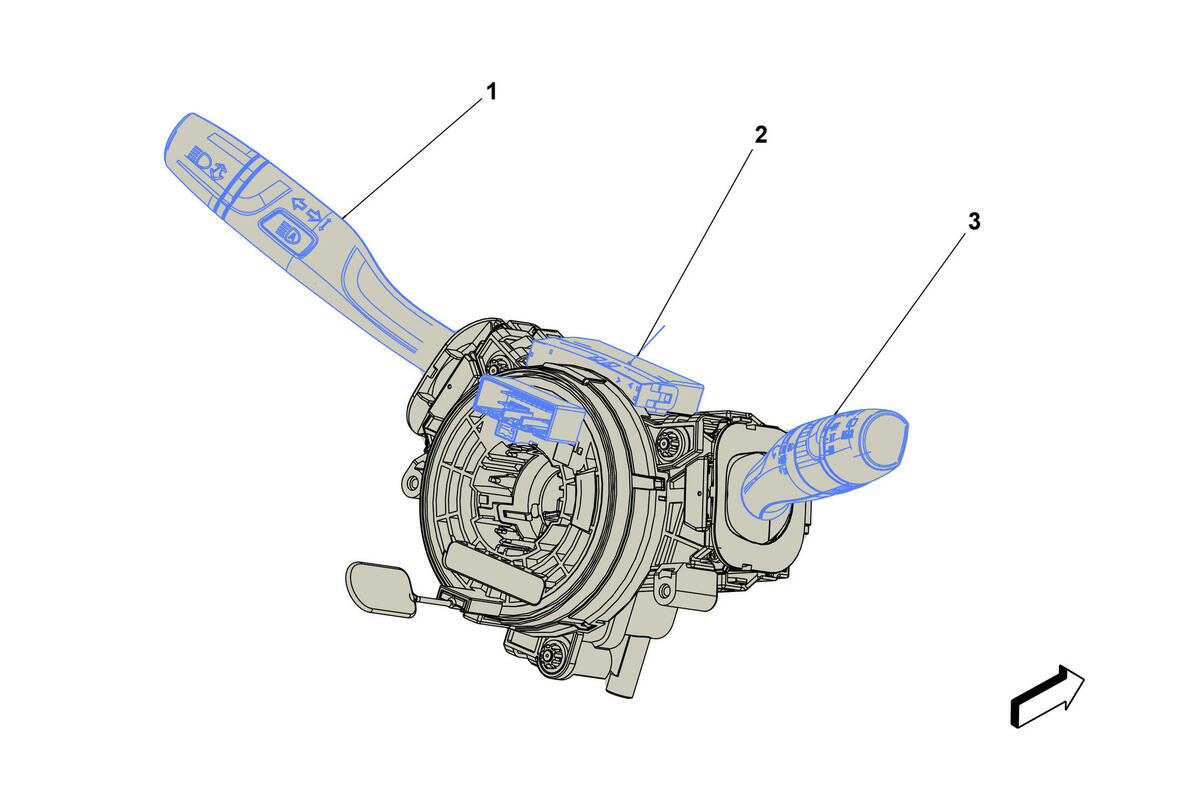

GM4589088Courtesy of GENERAL MOTORS COMPANY
Steering Wheel Controls

Items
1. S78 Turn Signal/Multifunction Switch
S78 Turn Signal/Multifunction Switch
2. X85 Steering Wheel Air Bag Coil
X85 Steering Wheel Air Bag Coil X1 , or
X85 Steering Wheel Air Bag Coil X2 .
3. S82 Windshield Wiper/Washer Switch
S82 Windshield Wiper/Washer Switch
