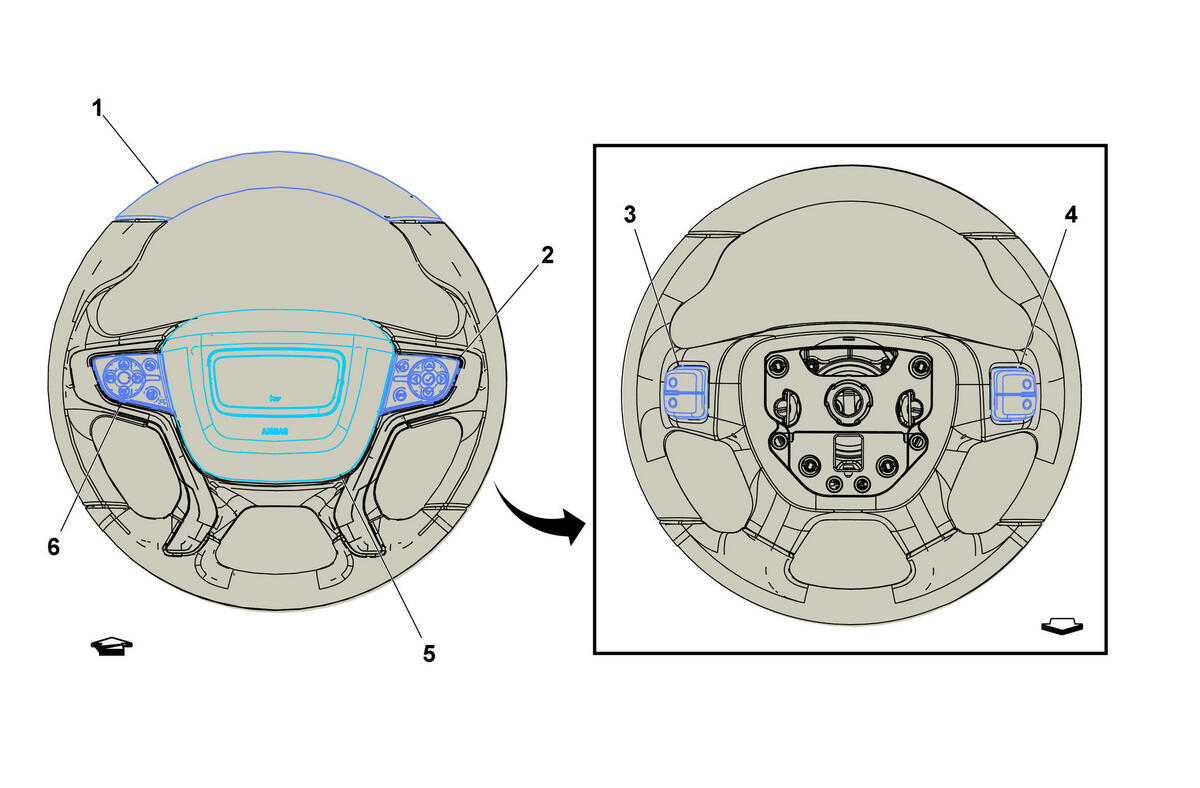

Steering Wheel (GMC with UVD) 1 of 2

WARNING: This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Items
1. K32 Steering Wheel Heating Control Module (UVD) K32 Steering Wheel Heating Control Module X1 (UVD) , or K32 Steering Wheel Heating Control Module X2 (UVD) .
2. S70R Steering Wheel Controls Switch - Right S70R Steering Wheel Controls Switch - Right (-EPH) , or S70R Steering Wheel Controls Switch - Right (EPH) .
3. S70F Steering Wheel Controls Switch - Radio Volume S70F Steering Wheel Controls Switch - Radio Volume .
4. S70E Steering Wheel Controls Switch - Radio Presets S70E Steering Wheel Controls Switch - Radio Presets .
5. F107 Steering Wheel Air Bag F107 Steering Wheel Air Bag (AJG) , or F107 Steering Wheel Air Bag X1 (AY0) , or F107 Steering Wheel Air Bag X2 (AY0) .
6. S70L Steering Wheel Controls Switch - Left S70L Steering Wheel Controls Switch - Left (-EPH) , or S70L Steering Wheel Controls Switch - Left (EPH) .
