Rear of the Center Console Storage Compartment

WARNING: This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

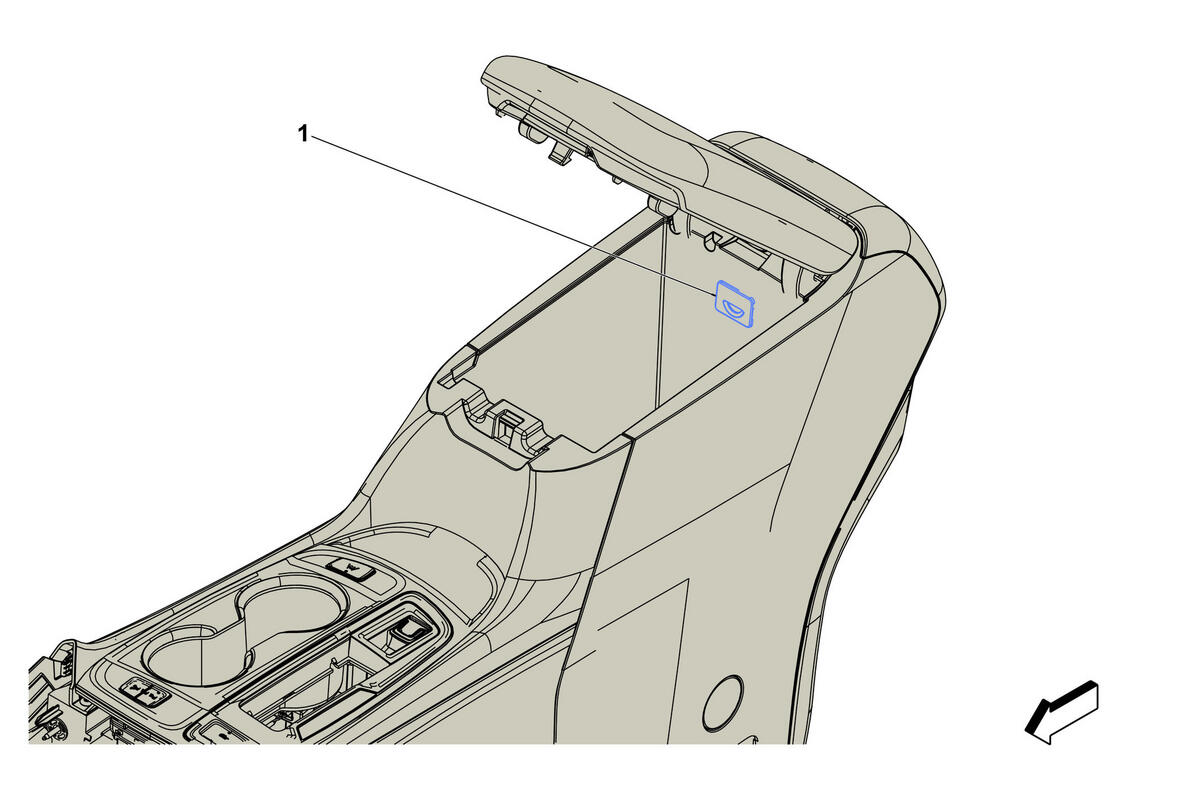

GM4589098Courtesy of GENERAL MOTORS COMPANY
Rear of the Center Console Storage Compartment

Items
1. E28 Center Console Compartment Lamp
E28 Center Console Compartment Lamp .
