Lower Left of the Instrument Panel/Data Link Connector

WARNING: This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

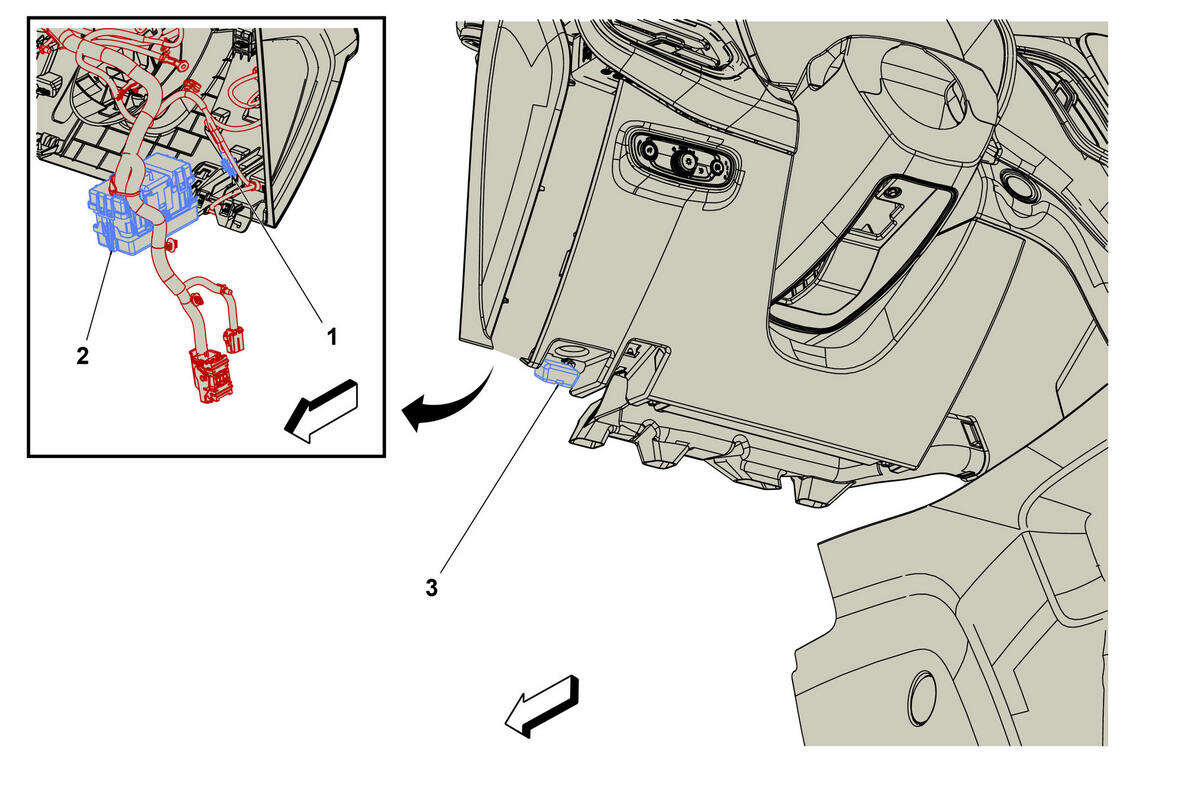

GM4589083Courtesy of GENERAL MOTORS COMPANY
Lower Left of the Instrument Panel/Data Link Connector

Items
1. X22 USB Drive Data Connector (UDD+IOS/IOT/IOU)
X22 USB Drive Data Connector (IOR+UDD) .
2. X51A Fuse Block - Instrument Panel
3. X84 Data Link Connector
X84 Data Link Connector .
