Left Side of the Instrument Panel
WARNING: This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

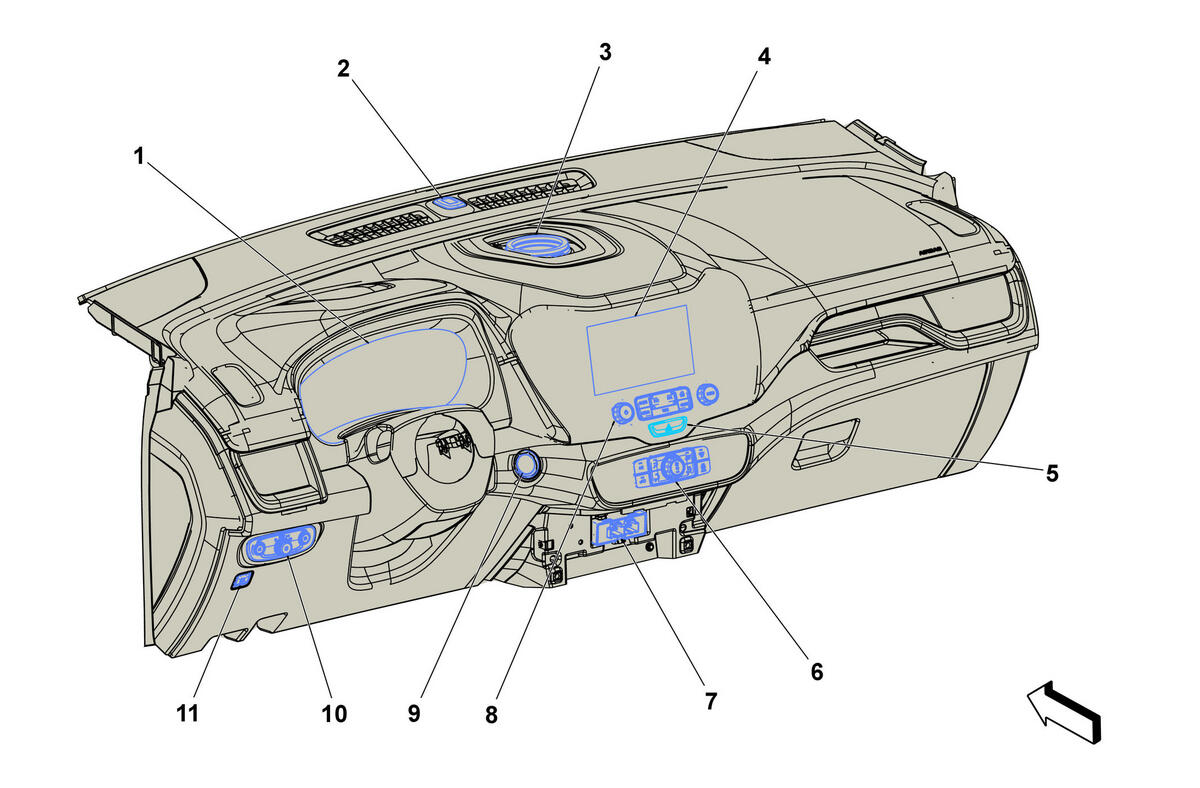

Left Side of the Instrument Panel
| Items |
|---|
| 1. P16 Instrument Cluster P16 Instrument Cluster X1 , or P16 Instrument Cluster X3 (IOR+UDD) . |
| 2. B10B Ambient Light/Sunload Sensor B10B Ambient Light/Sunload Sensor (-UE1) , or B10B Ambient Light/Sunload Sensor (UE1) . |
| 3. P19B Speaker - Center Instrument Panel (UQA) P19B Speaker - Center Instrument Panel (UQA) . |
| 4. P17 Info Display Module P17 Info Display Module X1 (EPH+(IOS/IOT/IOU)) , or P17 Info Display Module X1 (IOR) , or P17 Info Display Module X2 . |
| 5. S26 Hazard Warning Switch S26 Hazard Warning Switch (KL9) . |
| 6. A26 HVAC Controls A26 HVAC Controls . |
| 7. K56 Serial Data Gateway Module K56 Serial Data Gateway Module X1 , or K56 Serial Data Gateway Module X2 . |
| 8. A22 Radio Controls (IOR) A22 Radio Controls (IOR) . |
| 9. S38 Ignition Mode Switch S38 Ignition Mode Switch . |
| 10. S30 Headlamp Switch S30 Headlamp Switch . |
| 11. B80 Park Brake Switch B80 Park Brake Switch (-EPH) , or B80 Park Brake Switch (EPH) . |
