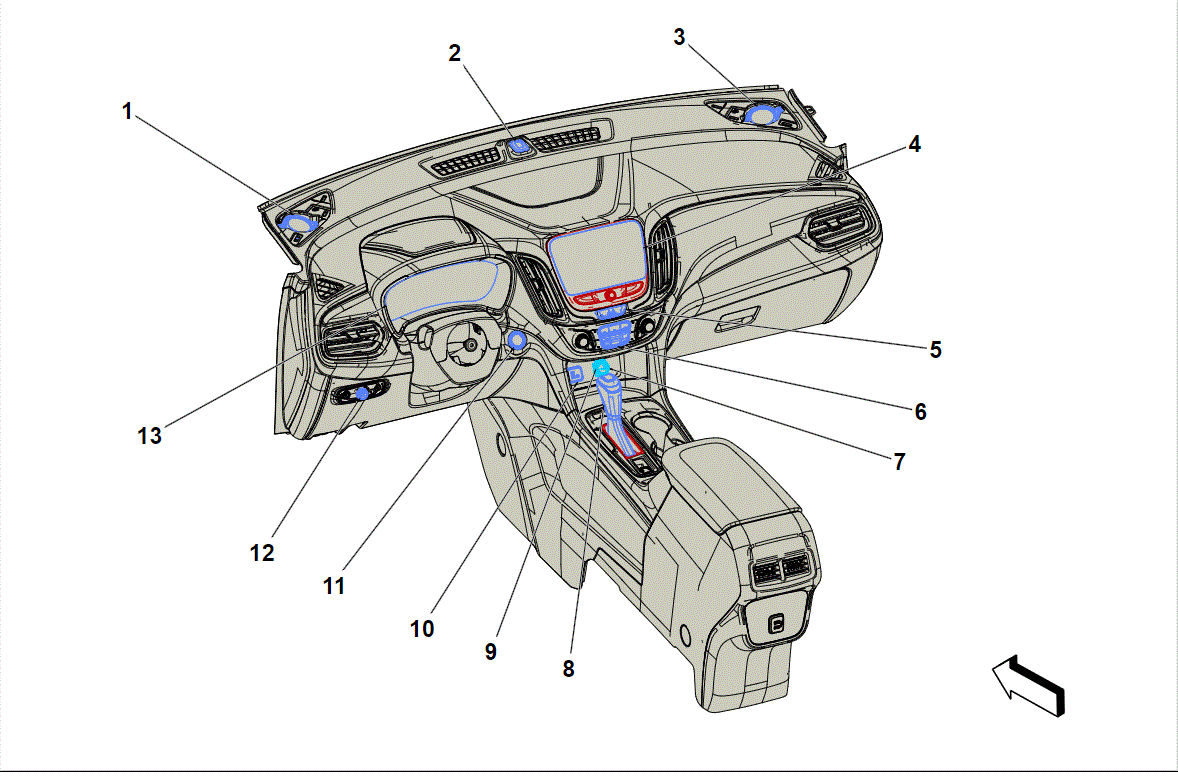

Instrument Panel and Shift Lever

WARNING: This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Items
1. P19J Speaker - Left Instrument Panel P19J Speaker - Left Instrument Panel (UQA) , or P19J Speaker - Left Instrument Panel (UZ6) .
2. B10B Ambient Light/Sunload Sensor B10B Ambient Light/Sunload Sensor (-UE1) , or B10B Ambient Light/Sunload Sensor (UE1) .
3. P19W Speaker - Right Instrument Panel P19W Speaker - Right Instrument Panel (UQA) , or P19W Speaker - Right Instrument Panel (UZ6)
4. P17 Info Display Module P17 Info Display Module X1 (EPH+(IOS/IOT/IOU)) , or P17 Info Display Module X1 (IOR) , or P17 Info Display Module X2 .
5. S26 Hazard Warning Switch S26 Hazard Warning Switch (KL9) .
6. A26 HVAC Controls A26 HVAC Controls .
7. X80G Accessory Power Receptacle - Instrument Panel X80G Accessory Power Receptacle - Instrument Panel (KC5) .
8. S3 Transmission Shift Lever (Without EPH) S3 Transmission Shift Lever .
9. E32 Cigarette Lighter Receptacle (SAO/U37) E32 Cigarette Lighter Receptacle (U37) .
10. X83 Auxiliary Audio Input X83 Auxiliary Audio Input X1 , or X83 Auxiliary Audio Input X2 .
11. S38 Ignition Mode Switch S38 Ignition Mode Switch
12. S30 Headlamp Switch S30 Headlamp Switch .
13. P16 Instrument Cluster P16 Instrument Cluster X1 , or P16 Instrument Cluster X3 (IOR+UDD) .
