Front of the Center Console Storage Compartment

WARNING: This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

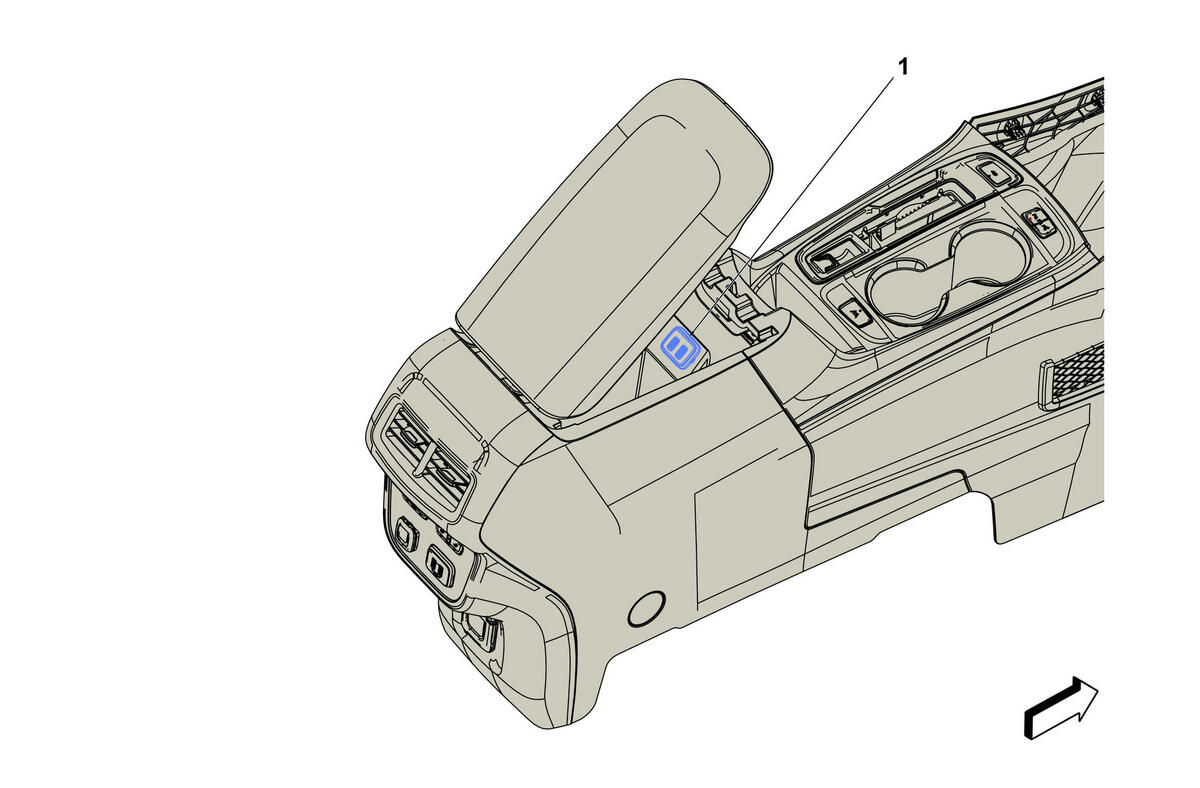

GM4589096Courtesy of GENERAL MOTORS COMPANY
Front of the Center Console Storage Compartment

Items
1. X92 USB Receptacle
X92 USB Receptacle X1 (MCZ) , or
X92 USB Receptacle X2 (MCZ) , or
X92 USB Receptacle X3 (MCZ) .
