Front of the Center Console (GMC)

WARNING: This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

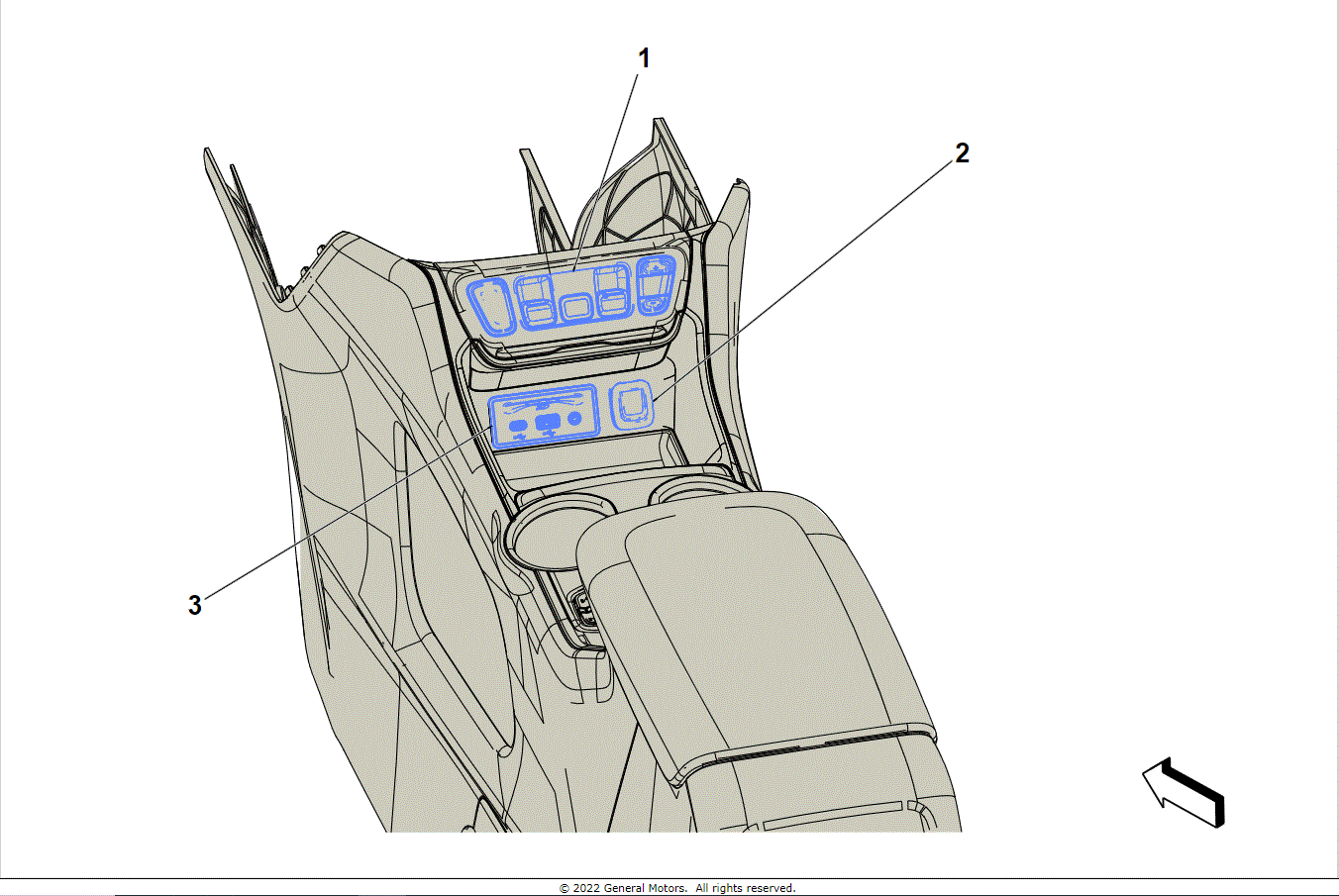

GM4595325Courtesy of GENERAL MOTORS COMPANY
Front of the Center Console (GMC)

Items
1. A97 Transmission Range Selector Controls (EPH)
A97 Transmission Range Selector Controls (EPH) .
2. E32 Cigarette Lighter Receptacle (SAO/U37)
E32 Cigarette Lighter Receptacle (U37) .
3. X83 Auxiliary Audio Input
X83 Auxiliary Audio Input X1 , or
X83 Auxiliary Audio Input X2 .
