Behind the Instrument Panel (Chevrolet)

WARNING: This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

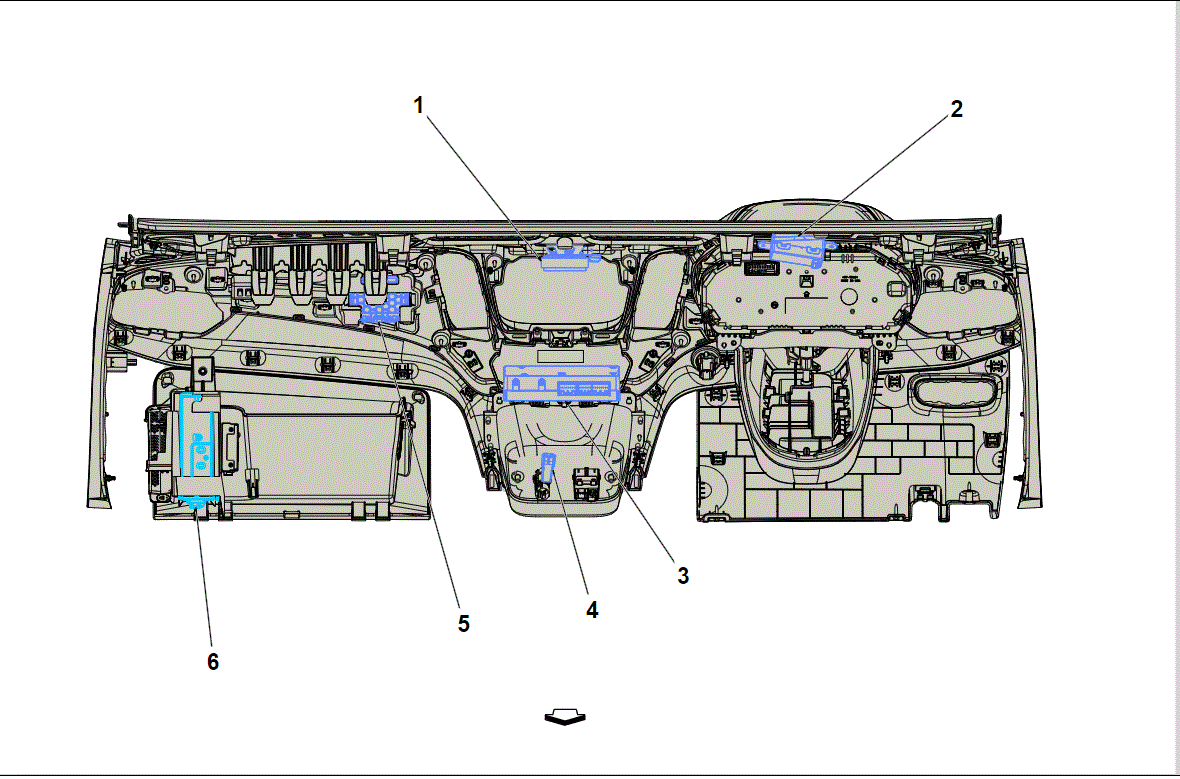

Items
1. P19B Speaker - Center Instrument Panel (UQA) P19B Speaker - Center Instrument Panel (UQA) .
2. P43 Collision Alert Indicators (UEU) P43 Collision Alert Indicators .
3. K73 Telematics Communication Interface Control Module (UE1) K73 Telematics Communication Interface Control Module X1 (UE1) , or K73 Telematics Communication Interface Control Module X5 (UE1) , or K73 Telematics Communication Interface Control Module X7 (UE1) .
4. R6F Terminating Resistor - High Speed Extension Bus 2
5. K56 Serial Data Gateway Module K56 Serial Data Gateway Module X1 , or K56 Serial Data Gateway Module X2 .
6. A11 Radio A11 Radio X1 (IOR) , or A11 Radio X1 (IOS/IOT/IOU) , or A11 Radio X2 (IOR) , or A11 Radio X2 (IOS/IOT/IOU) , or A11 Radio X3 (IOR) , or A11 Radio X3 (IOR+UE1) , or A11 Radio X3 (IOS/IOT/IOU) , or A11 Radio X4 ((IOS/IOT/IOU)+(MCR+MCZ)) , or A11 Radio X4 (IOR) , or A11 Radio X5 ((IOS/IOT/IOU)+(UV2/UVB)) , or A11 Radio X5 (IOS/IOT/IOU) , or A11 Radio X6 (IOS/IOT/IOU) , or A11 Radio X7 , or A11 Radio X8 ((IOS/IOT/IOU)-UE1) , or A11 Radio X9 (U2K) .
