Ground Views: G205

WARNING: This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

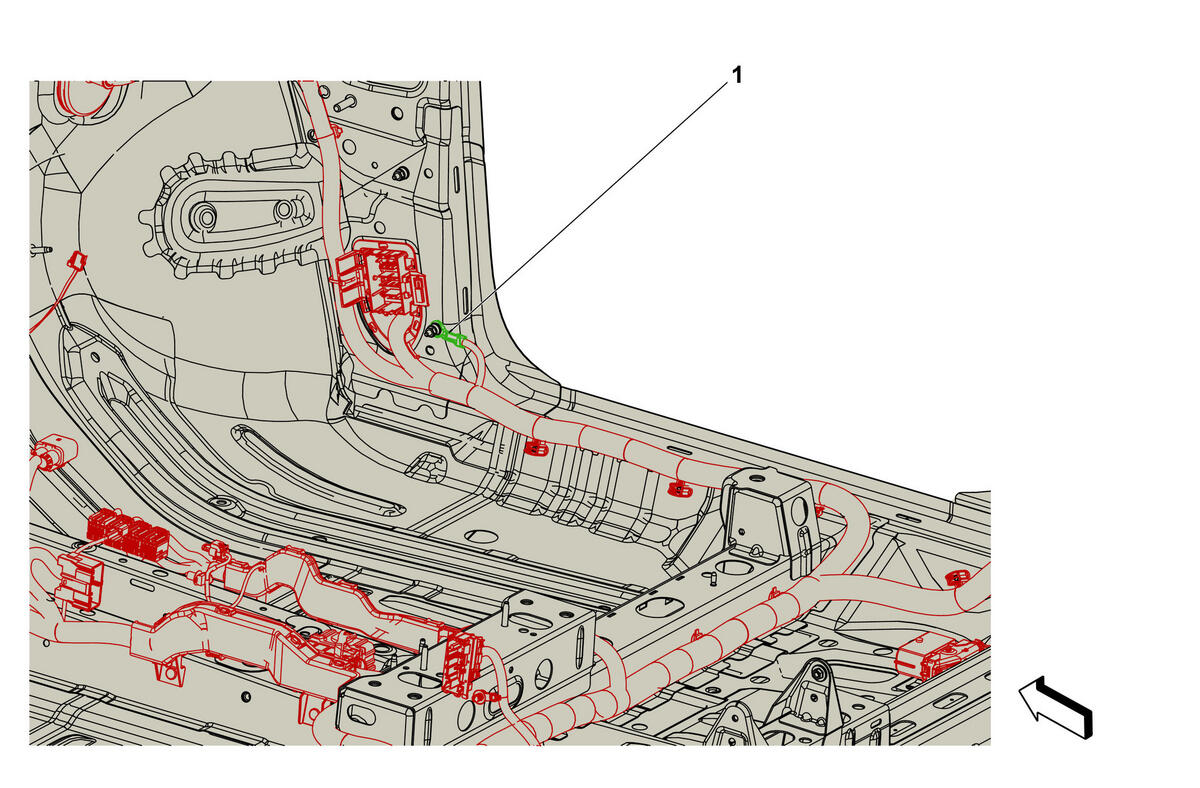

GM4586895Courtesy of GENERAL MOTORS COMPANY
G205

Harness Name Callout
G205 Body Harness 1
