Ground Views: G203

WARNING: This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

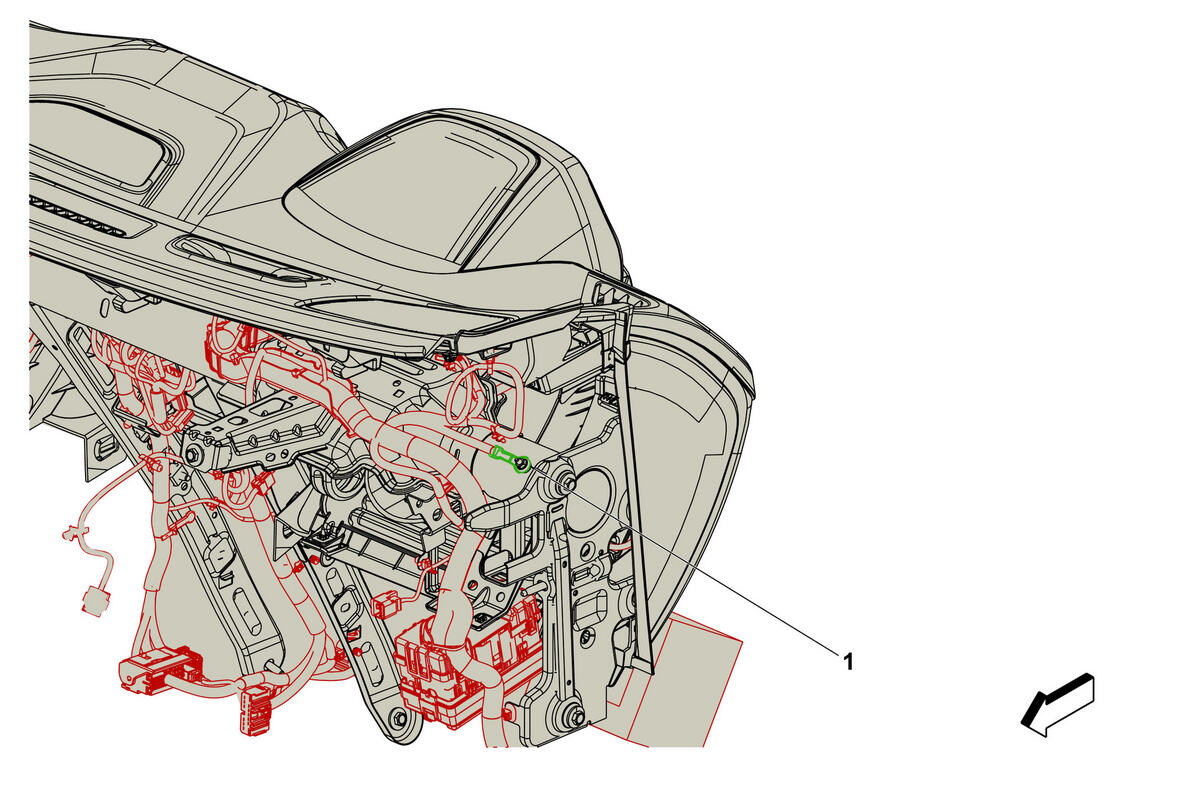

GM4589719Courtesy of GENERAL MOTORS COMPANY
G203

Harness Name Callout
G203 Instrument Panel Harness 1
