Ground Views: G112

WARNING: This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

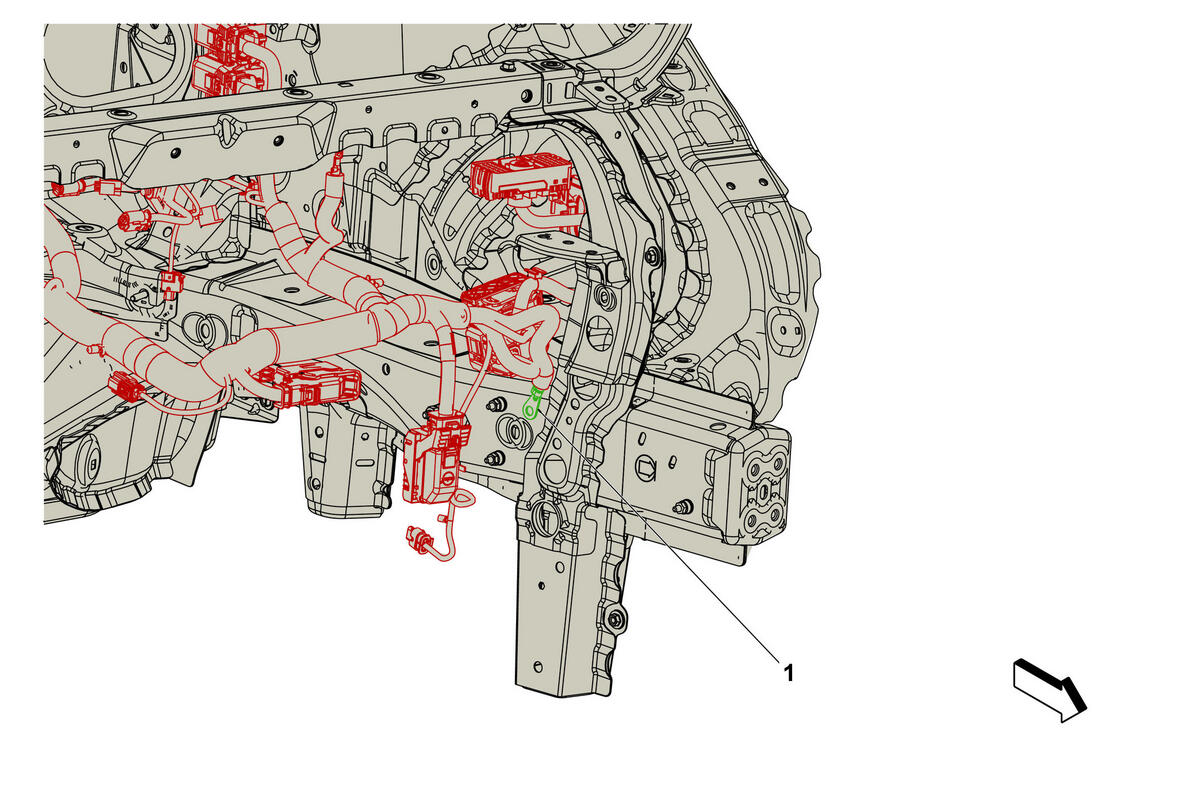

GM4586894Courtesy of GENERAL MOTORS COMPANY
G112

Harness Name Callout
G112 Power Steering Harness 1
