Section 331 (Electrical Component Locator And Harness Routing Views)
>>
Component Locator
>>
Ground Views
>>
G104, and G105 (LYX)
G104, and G105 (LYX)
WARNING:
This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

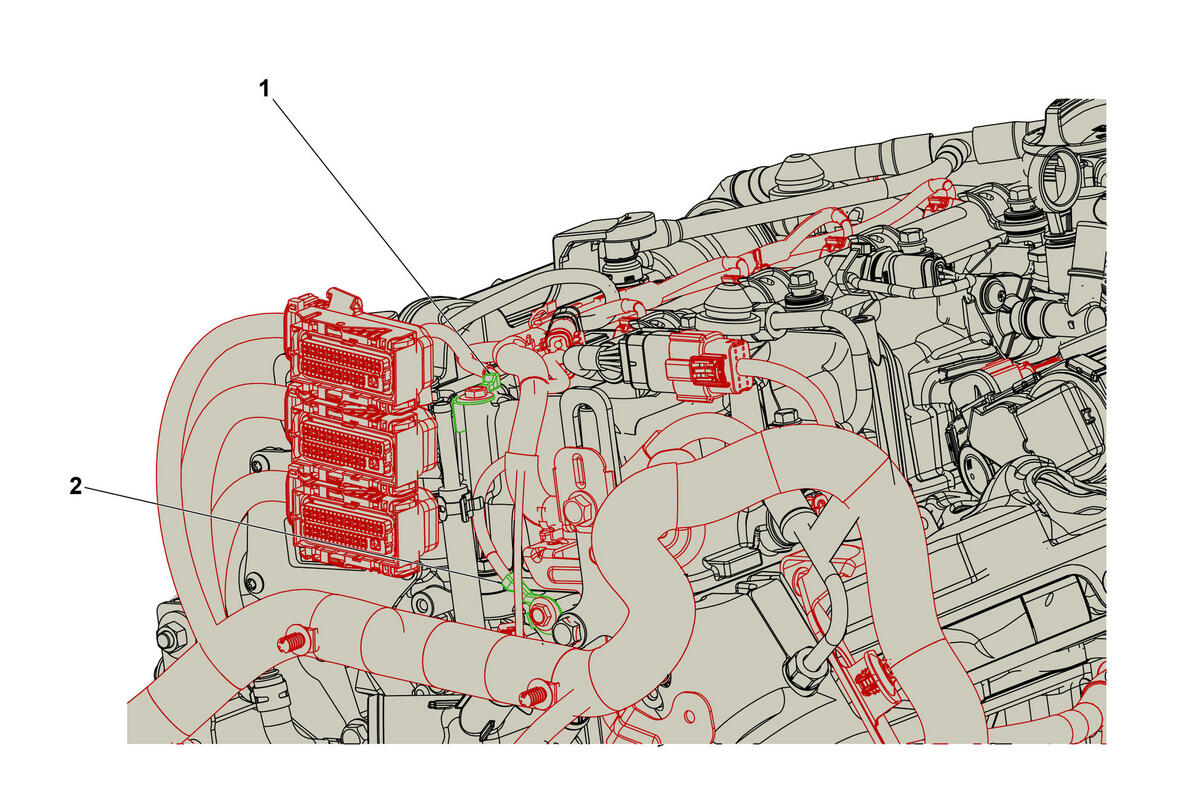

G104, and G105 (LYX)
Harness Name
Callout
G104 Engine Harness
1
G105 Engine Harness
2
