G101 and G102

WARNING: This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

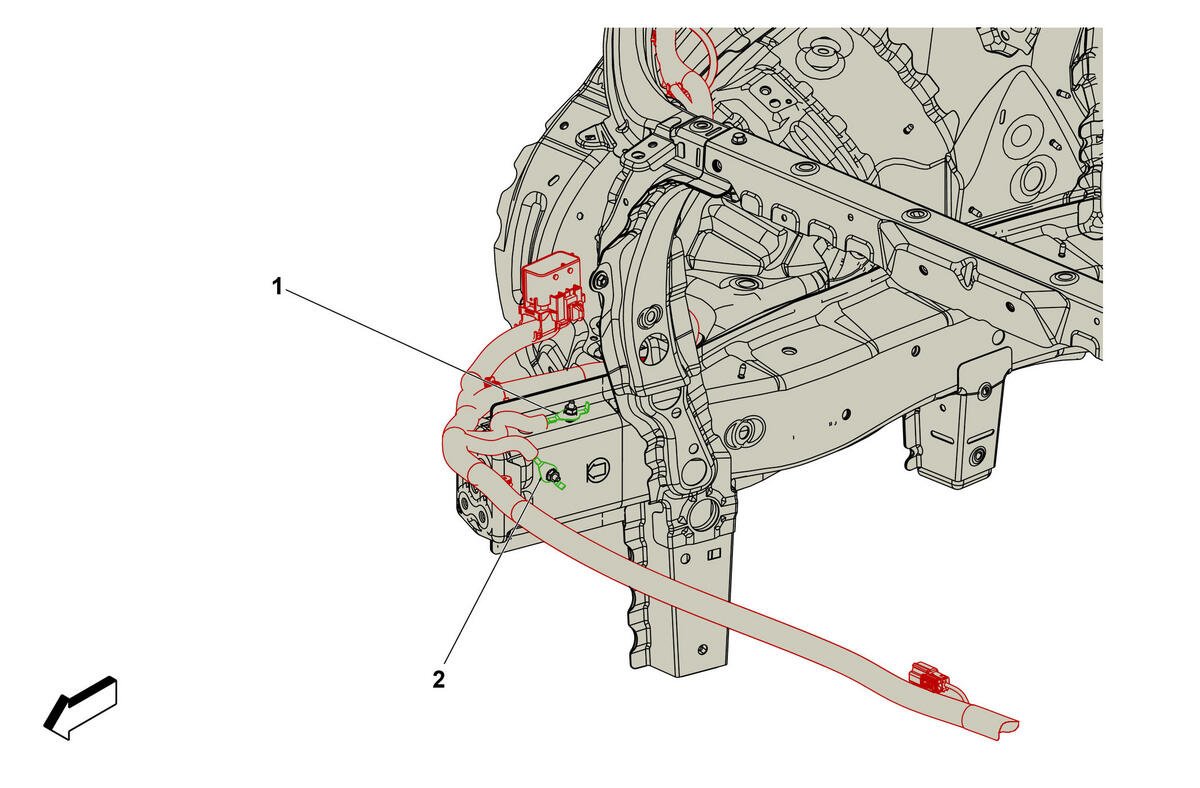

GM4586883Courtesy of GENERAL MOTORS COMPANY
G101 and G102

Harness Name Callout
G101 Forward Lamp Harness 1
G102 Forward Lamp Harness 2
