G100, and G110

WARNING: This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

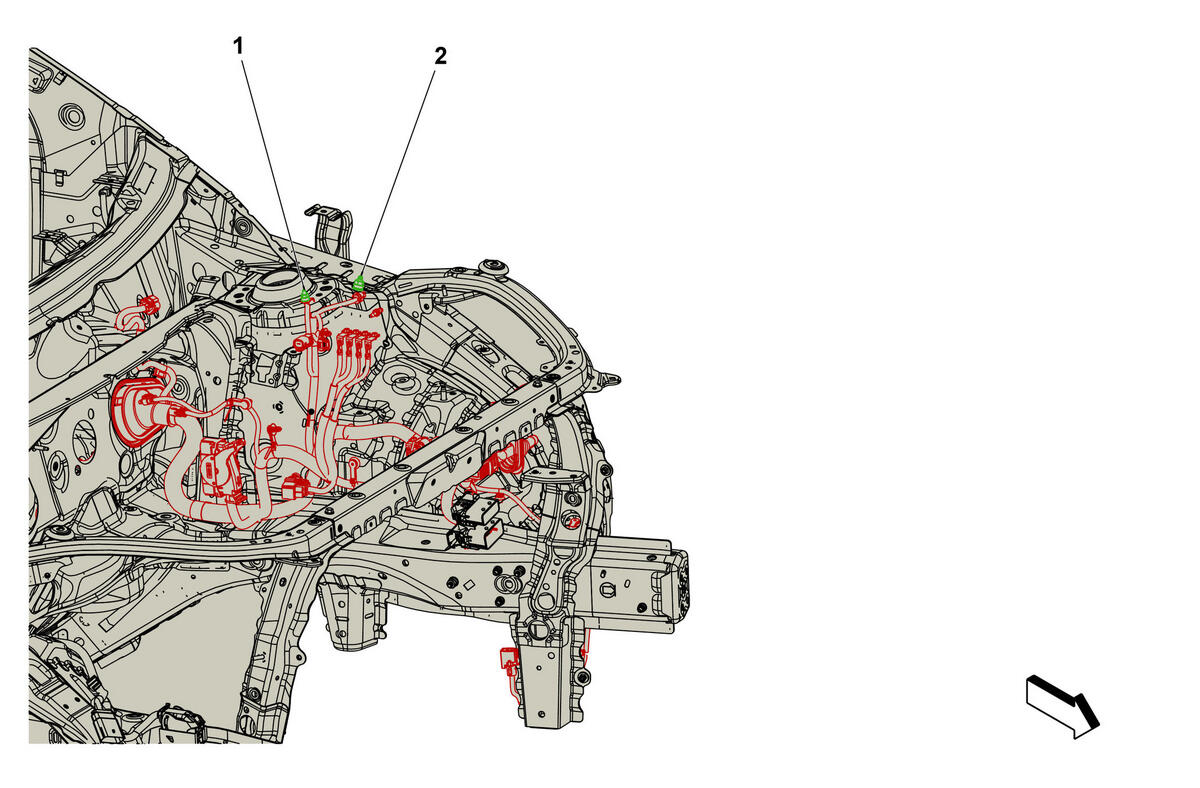

GM4595361Courtesy of GENERAL MOTORS COMPANY
G100, and G110

Harness Name Callout
G110 Body Harness 1
G100 Battery Negative Cable 2
