Rear of the Engine Compartment/Power Steering Control Module

WARNING: This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

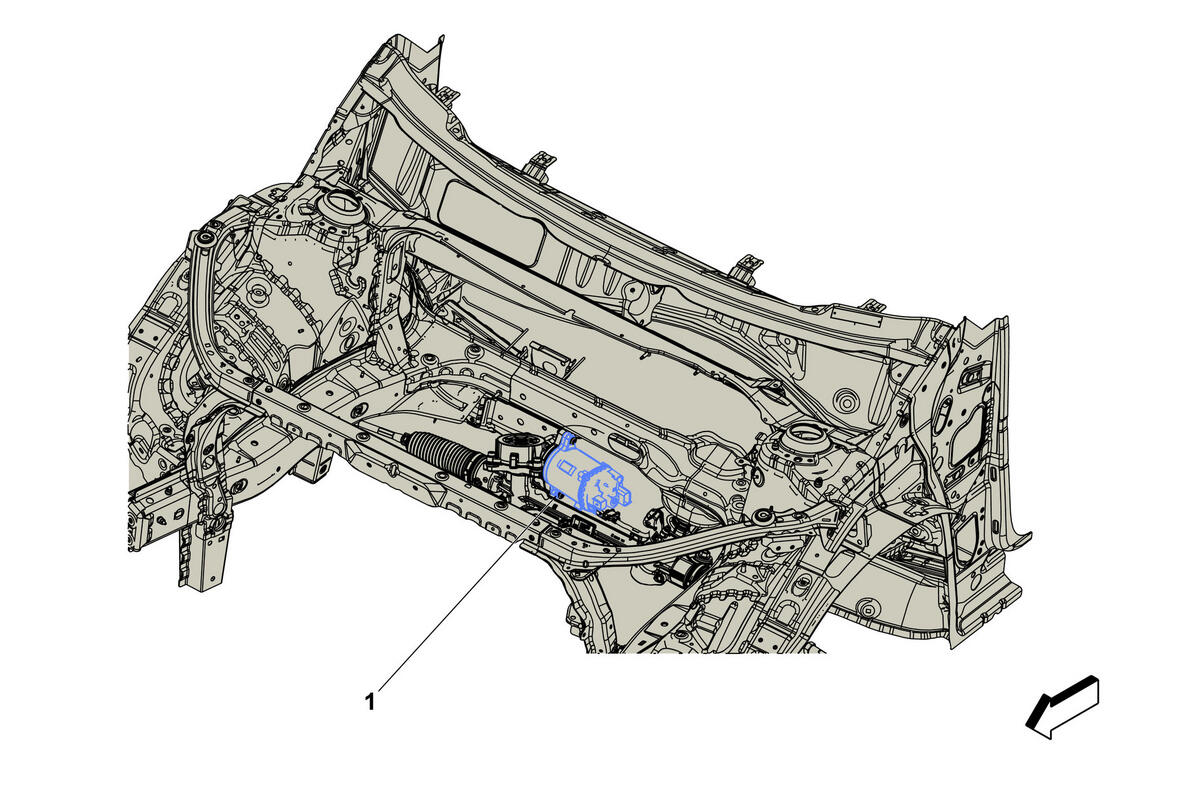

GM4595239Courtesy of GENERAL MOTORS COMPANY
Rear of the Engine Compartment/Power Steering Control Module

Items
1. K43 Power Steering Control Module
K43 Power Steering Control Module X1 , or
K43 Power Steering Control Module X2
