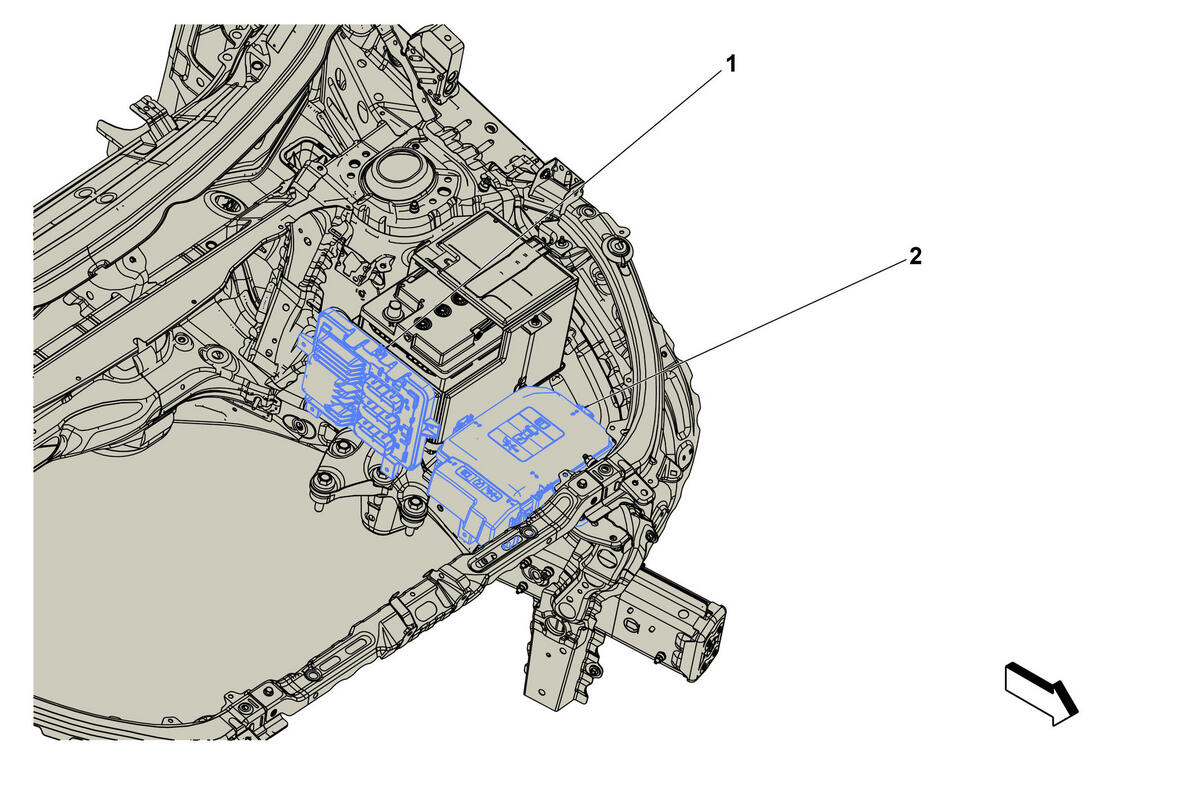

Left Side of the Engine Compartment (1 of 2)

WARNING: This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Items
1. K20 Engine Control Module K20 Engine Control Module X1 (LTG) , or K20 Engine Control Module X1 (LYX+E80+NTM) , or K20 Engine Control Module X1 (LYX+E88-NTM) , or K20 Engine Control Module X2 (LTG) , or K20 Engine Control Module X2 (LYX+E80+NTM) , or K20 Engine Control Module X2 (LYX+E88-NTM) , or K20 Engine Control Module X3 (LTG) , or K20 Engine Control Module X3 (LYX+E80+NTM) , or K20 Engine Control Module X3 (LYX+E88-NTM) .
2. X50A Fuse Block - Underhood X50A Fuse Block - Underhood X1 , or X50A Fuse Block - Underhood X11 , or X50A Fuse Block - Underhood X2 , or X50A Fuse Block - Underhood X3 , or X50A Fuse Block - Underhood X6 , or X50A Fuse Block - Underhood X7 , or X50A Fuse Block - Underhood X8 , or X50A Fuse Block - Underhood X9 .

Items

1. K20 Engine Control Module
K20 Engine Control Module X1 (LTG) , or
K20 Engine Control Module X1 (LYX+E80+NTM) , or
K20 Engine Control Module X1 (LYX+E88-NTM) , or
K20 Engine Control Module X2 (LTG) , or
K20 Engine Control Module X2 (LYX+E80+NTM) , or
K20 Engine Control Module X2 (LYX+E88-NTM) , or
K20 Engine Control Module X3 (LTG) , or
K20 Engine Control Module X3 (LYX+E80+NTM) , or
K20 Engine Control Module X3 (LYX+E88-NTM) .

2. X50A Fuse Block - Underhood
X50A Fuse Block - Underhood X1 , or
X50A Fuse Block - Underhood X11 , or
X50A Fuse Block - Underhood X2 , or
X50A Fuse Block - Underhood X3 , or
X50A Fuse Block - Underhood X6 , or
X50A Fuse Block - Underhood X7 , or
X50A Fuse Block - Underhood X8 , or
X50A Fuse Block - Underhood X9 .
