Front of the Engine Compartment and Transmission (MNH)
WARNING: This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
Front of the Engine Compartment and Transmission (MNH)

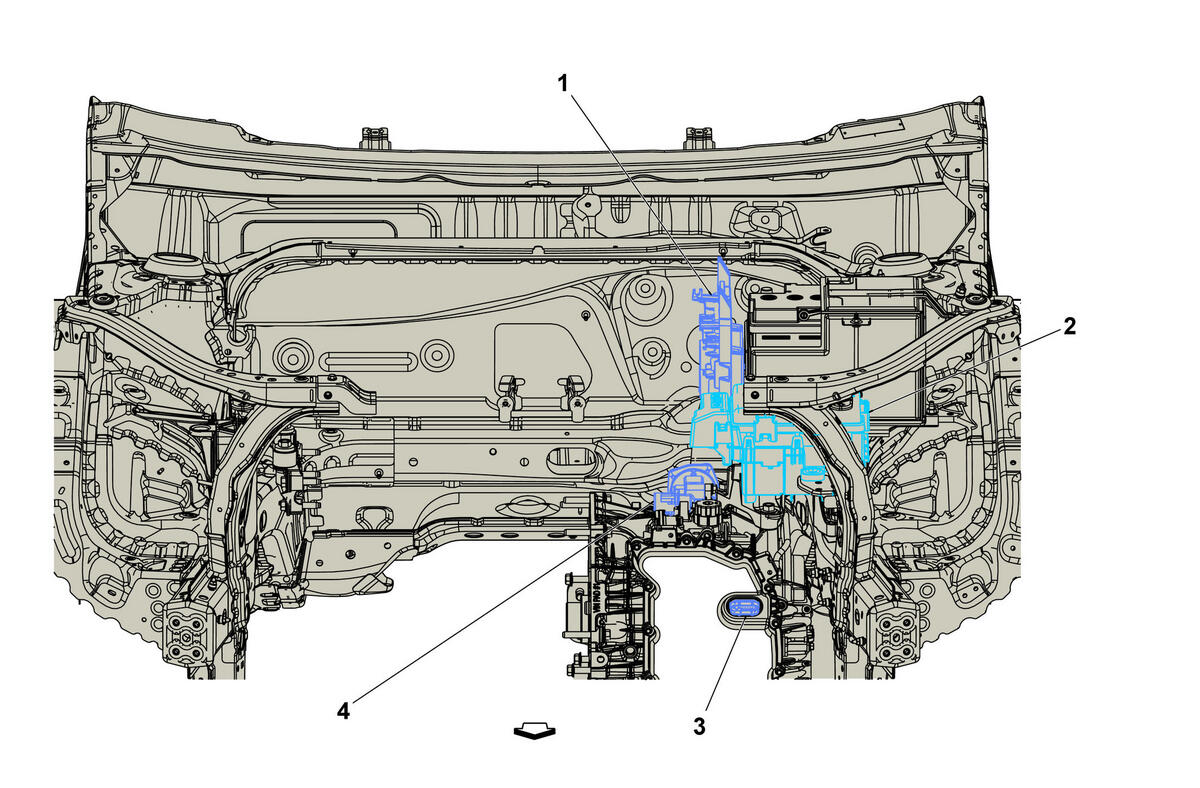

| Items |
|---|
| 1. K20 Engine Control Module K20 Engine Control Module X1 (LTG) , or K20 Engine Control Module X1 (LYX+E80+NTM) , or K20 Engine Control Module X1 (LYX+E88-NTM) , or K20 Engine Control Module X2 (LTG) , or K20 Engine Control Module X2 (LYX+E80+NTM) , or K20 Engine Control Module X2 (LYX+E88-NTM) , or K20 Engine Control Module X3 (LTG) , or K20 Engine Control Module X3 (LYX+E80+NTM) , or K20 Engine Control Module X3 (LYX+E88-NTM) . |
| 2. X50A Fuse Block - Underhood X50A Fuse Block - Underhood X1 , or X50A Fuse Block - Underhood X11 , or X50A Fuse Block - Underhood X2 , or X50A Fuse Block - Underhood X3 , or X50A Fuse Block - Underhood X6 , or X50A Fuse Block - Underhood X7 , or X50A Fuse Block - Underhood X8 , or X50A Fuse Block - Underhood X9 . |
| 3. Q8 Control Solenoid Valve Assembly Q8 Control Solenoid Valve Assembly X1 (MNH/MNK) , or Q8 Control Solenoid Valve Assembly X2 (MNK) |
| 4. B280 Automatic Transmission Accumulator Solenoid Valve (KL9) B280 Automatic Transmission Accumulator Solenoid Valve (KL9) |
