Cooling Fan
WARNING: This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

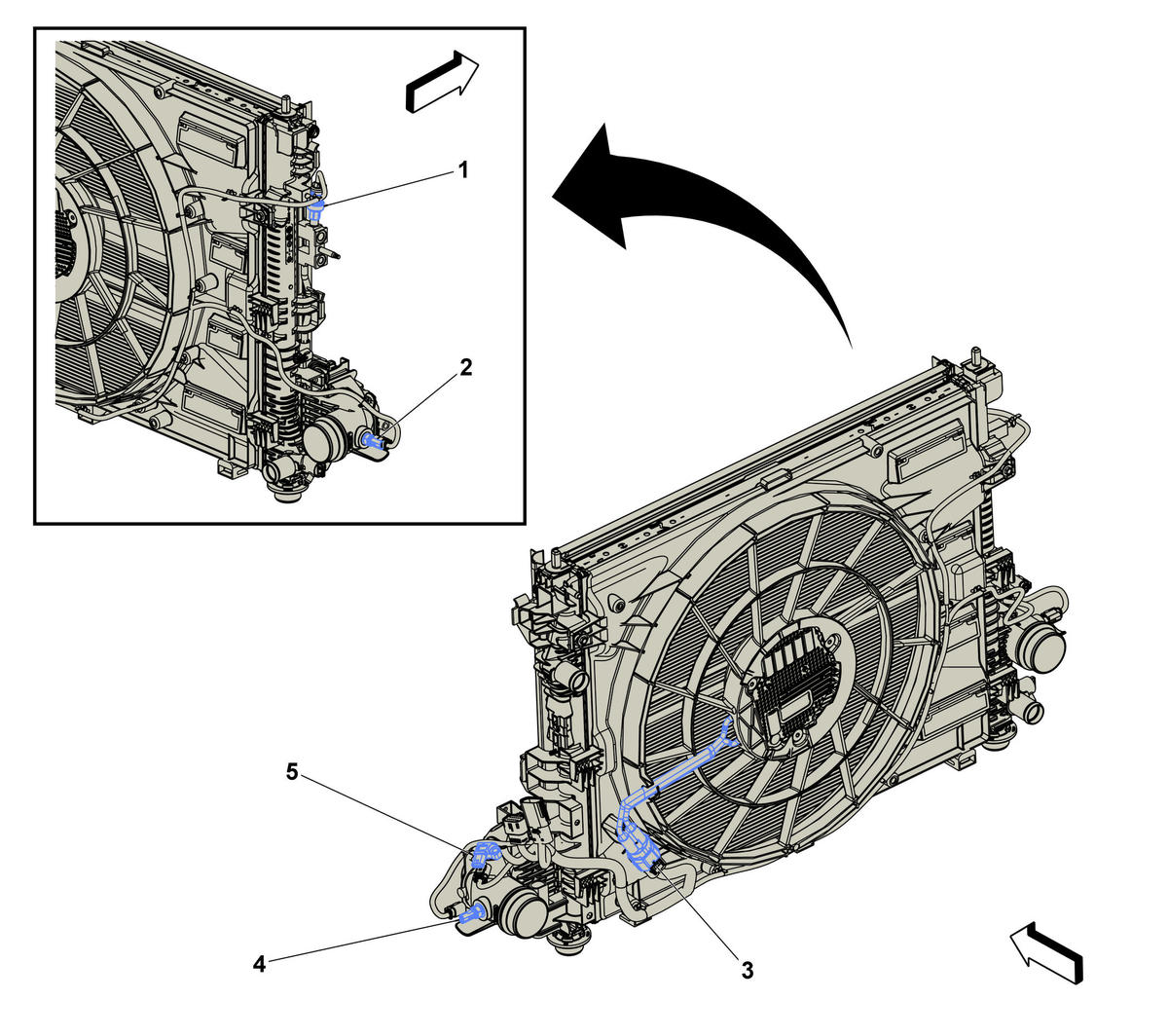

Cooling Fan
| Items |
|---|
| 1. B1 A/C Refrigerant Pressure Sensor B1 A/C Refrigerant Pressure Sensor |
| 2. B193A Charge Air Cooler Inlet Temperature Sensor |
| 3. G10 Cooling Fan Motor G10 Cooling Fan Motor |
| 4. B193B Charge Air Cooler Outlet Temperature Sensor |
| 5. B111 Turbocharger Boost Sensor (LYX) B111 Turbocharger Boost Sensor (LYX) |
